1785/16 100

Active

CBL RIBN 16COND TWIST-PAIR 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1785/16 100

Active

CBL RIBN 16COND TWIST-PAIR 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1785 Series

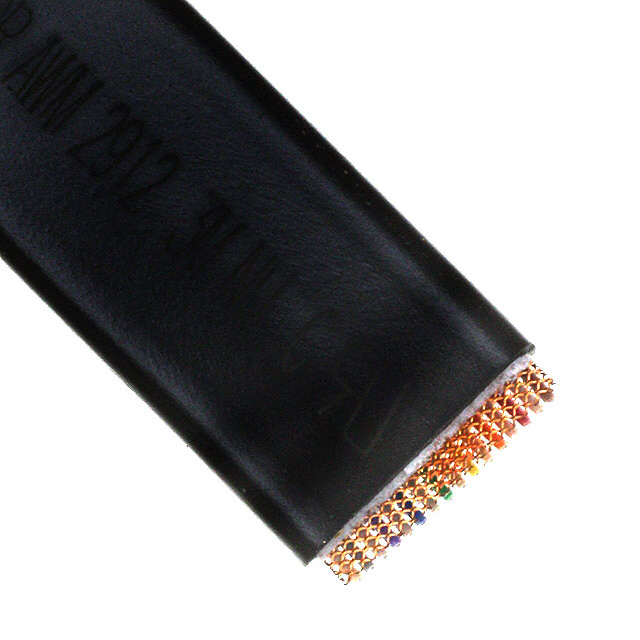

Flat Ribbon Cable Black 16 (8 Pair Twisted) Conductors 0.050" (1.27mm) Flat Twisted Pair, Flat Jacket 100.0' (30.48m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1785/16 100	1785 Series

Cable Type	Flat Twisted Pair, Flat Jacket	Flat Twisted Pair, Flat Jacket
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	36 AWG	36 AWG
Features	-	Splice Free
Insulation Resistance	1 GOhms	1 GOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Black	Black
Length	-	7.62 - 60.96 m
Length	-	25 - 200 ft
Length [x]	100 ft	10 - 100 ft
Length [x]	30.48 m	3.05 - 30.48 m
Number of Conductors	16	10 - 64
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	UL Style 2912	UL Style 2912
Ribbon Thickness	3.05 mm	3.05 mm
Ribbon Thickness	0.12 in	0.12 in
Ribbon Width	-	1.43 - 3.38 in
Ribbon Width	-	28.7 - 85.85 mm
Ribbon Width	-	1.13 - 3.13 in
Ribbon Width	-	66.8 mm
Ribbon Width	-	0.63 in
Ribbon Width	-	16 mm
Shielding	Shielded	Shielded
Voltage	150 V	150 V
Wire Gauge	28 AWG	28 AWG

1785 Series

80001258435 1785/34BP=34/CAB/RC/FLJKSHDTPMT/(9.0,1.5)/28AWG/.050/CL2/100

Part	Voltage	Ribbon Thickness	Ribbon Thickness	Cable Type	Conductor Material	Length [x]	Length [x]	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Insulation Resistance	Ribbon Width	Ribbon Width	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Jacket (Insulation) Material	Wire Gauge	Number of Conductors	Pitch [x]	Pitch [x]	Features	Length	Length	Ribbon Width [x]	Ribbon Width [x]
3M 1785/34BP	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	100 ft	30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms	1.83 in	46.48 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	34	0.05 in	1.27 mm
3M 1785/60 100SF	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	10 ft, 100 ft	3.05 m, 30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms		79.5 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	60	0.05 in	1.27 mm	Splice Free	7.62 m, 15.24 m	25 ft, 50 ft	3.13 in
3M 1785/34 100	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	100 ft	30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms	1.83 in	46.48 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	34	0.05 in	1.27 mm
3M 1785/50 200SF	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned			UL Style 2912	7	36 AWG	Black	1 GOhms			-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	50	0.05 in	1.27 mm	Splice Free	60.96 m	200 '	2.63 in	66.8 mm
3M 1785/34 100SF	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	10 ft, 100 ft	3.05 m, 30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms	1.83 in	46.48 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	34	0.05 in	1.27 mm	Splice Free	7.62 m, 15.24 m	25 ft, 50 ft
3M 1785/16 100	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	100 ft	30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms			-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	16	0.05 in	1.27 mm
3M 1785/60 100	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	100 ft	30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms		79.5 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	60	0.05 in	1.27 mm				3.13 in
3M 1785/50 100SF	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	100 ft	30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms			-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	50	0.05 in	1.27 mm	Splice Free	15.24 m	50 ft	2.63 in	66.8 mm
3M 1785/34TB	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned	100 ft	30.48 m	UL Style 2912	7	36 AWG	Black	1 GOhms	1.83 in	46.48 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	34	0.05 in	1.27 mm
3M 1785/36 100SF	150 V	3.05 mm	0.12 in	Flat Twisted Pair, Flat Jacket	Copper, Tinned			UL Style 2912	7	36 AWG	Black	1 GOhms		49.02 mm	-20 C	80 C	Shielded	Poly-Vinyl Chloride (PVC)	28 AWG	36	0.05 in	1.27 mm	Splice Free	15.24 m	50 ft	1.93 in
