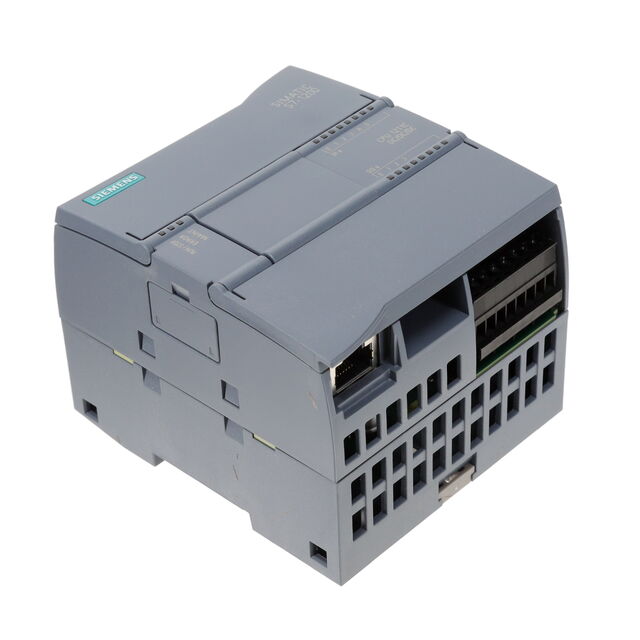

6ES72111AE400XB0

Active

Siemens

CPU 1211C, DC/DC/DC, 6DI/4DO/2AI

Search across all available documentation for this part.

Active

Siemens

CPU 1211C, DC/DC/DC, 6DI/4DO/2AI

Technical Specifications

Parameters and characteristics for this part

Specification	6ES72111AE400XB0

Approval Agency	UL, KC, cULus, RCM, FM, CE
Display Type	No Display
Expandable	False
Memory Size	50 KB
Number of Inputs and Type [custom]	Digital
Number of Inputs and Type [custom]	6
Number of Outputs and Type [x]	4
Number of Outputs and Type [x]	Pulse
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Voltage - Supply [Max]	28.8 VDC
Voltage - Supply [Min]	20.4 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Memory Size	Expandable	Display Type	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Approval Agency	Number of Outputs and Type [x]	Number of Outputs and Type [x]
Siemens 6ES72111HE400XB0	20.4 V	28.8 VDC	-20 C	60 °C	50 KB		No Display	4	Relay	Digital	6	CE cULus FM KC RCM UL
Siemens 6ES72111AE400XB0	20.4 V	28.8 VDC	-20 C	60 °C	50 KB		No Display			Digital	6	CE cULus FM KC RCM UL	4	Pulse

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable Logic Controller (PLC) Panel Mount 20.4 ~ 28.8VDC
