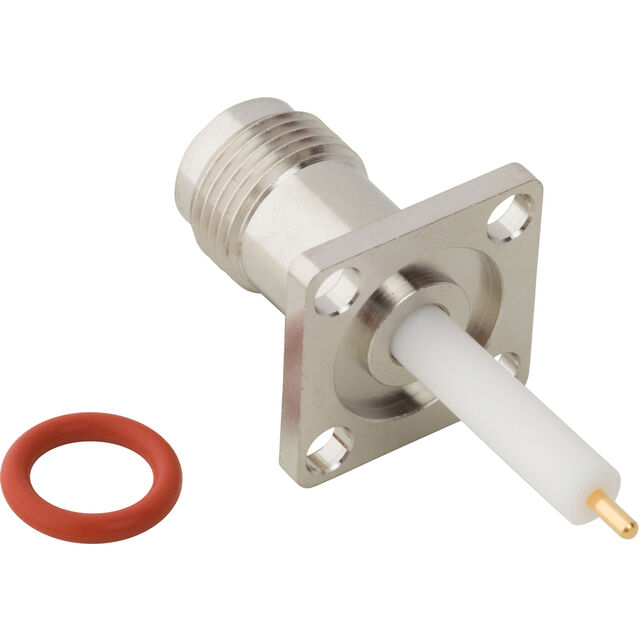

122958

Active

Amphenol RF

TNC STRAIGHT JACK, ROUND POST, 5

Search across all available documentation for this part.

Active

Amphenol RF

TNC STRAIGHT JACK, ROUND POST, 5

Technical Specifications

Parameters and characteristics for this part

Specification	122958

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Contact Termination	Impedance	Body Finish	Housing Color	Features	Voltage Rating	Center Contact Material	Mating Cycles	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Number of Ports	Shield Termination	Connector Type	Mounting Feature	Body Material	Center Contact Plating	Dielectric Material
Amphenol RF 122958	Solder	50 Ohms	Nickel	Silver	Extended Insulation	500 V	Phosphor Bronze	500	TNC	-65 ░C	165 °C	11 GHz	1	Solder	Female Socket Jack	Flange	Brass	Gold	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
