S20B-PADSS-1

Active

JST Sales America Inc.

CONN HEADER R/A 20POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

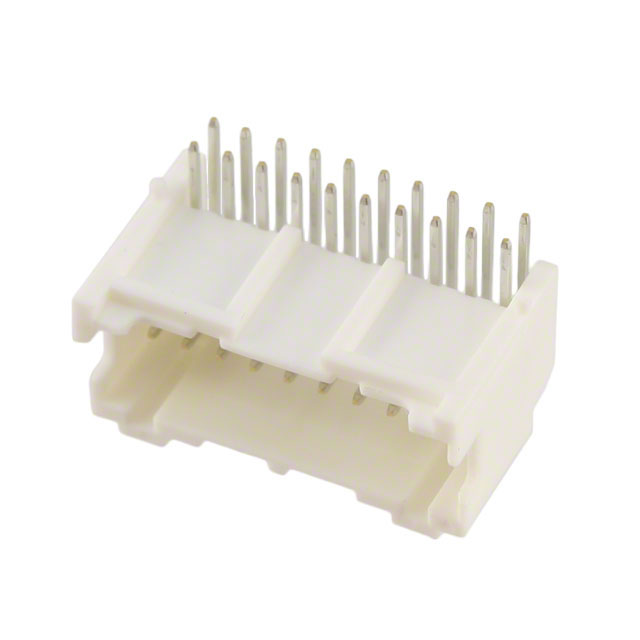

CONN HEADER R/A 20POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	S20B-PADSS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height [z]	10.49 mm
Insulation Height [z]	0.413 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Fastening Type	Contact Material	Features	Contact Length - Post	Contact Length - Post	Connector Type	Shrouding	Number of Rows	Insulation Material	Contact Finish - Post	Contact Shape	Contact Type	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height [z]	Insulation Height [z]	Insulation Color	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Termination	Voltage Rating	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Style
JST Sales America Inc. S20B-PADSS-1	Locking Ramp	Copper Alloy	Board Guide	0.118 in	3 mm	Header	Shrouded - 4 Wall	2	Polybutylene Terephthalate (PBT) Glass Filled	Tin	Square	Male Pin	All	0.079 in	2 mm	10.49 mm	0.413 in	Natural	20	0.079 in	2 mm	UL94 V-0	Solder	250 VDC	3 A	Through Hole Right Angle	-25 °C	85 °C	Board to Cable/Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 20 position 0.079" (2.00mm)
