UBJ224

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT JACK-JACK BNC 75OHM

Deep-Dive with AI

Search across all available documentation for this part.

UBJ224

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT JACK-JACK BNC 75OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.33
		10	$ 15.02
		30	$ 14.23
		50	$ 14.03
		100	$ 12.38

Description

General part information

UBJ Series

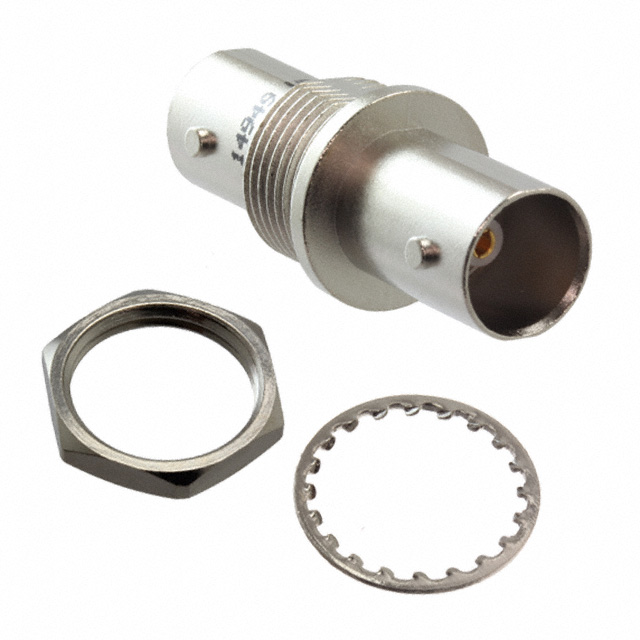

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UBJ224	UBJ Series

Adapter Series	BNC to BNC	TNC to TNC, BNC to BNC
Adapter Type	Jack to Jack	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	-	RG-174, Belden 8218, Essex 21-597, YR23023
Center Contact Material	-	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Connector Style	-	BNC
Connector Type	-	Female Socket, Jack
Contact Termination	-	Solder, Solder Cup, Crimp
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket	TNC Jack, Female Socket, BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack	Female Socket, TNC Jack, BNC Jack
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Isolated, Filter, Monitor
Frequency - Max [Max]	4 GHz	4 - 500 GHz
Housing Color	-	Silver
Impedance	75 Ohms	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	Connector, Washer, Nut, 1 Nut, 1 Connector, 1 Lockwasher
Includes	-	1 pcs
Mounting Feature	Bulkhead	Bulkhead - Front Side Nut, Bulkhead, Bulkhead - Rear Side Nut
Number of Ports	-	1 - 2
Operating Temperature	-	-65 ░C
Operating Temperature	-	165 °C
Shield Termination	-	Wrench Clamp, Solder, Crimp
Style	Straight	Straight
Voltage Rating	-	500 V

UBJ Series

CONN BNC JACK STR 75OHM SOLDER

Part	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Ports	Frequency - Max [Max]	Mounting Feature	Body Finish	Voltage Rating	Includes	Contact Termination	Shield Termination	Housing Color	Center Contact Plating	Body Material	Connector Type	Connector Style	Cable Group	Adapter Series	Style	Convert To (Adapter End)	Adapter Type	Convert From (Adapter End)	Conversion Type	Center Gender	Features	Includes	Dielectric Material
Cinch Connectivity Solutions Trompeter UBJ26-5	75 Ohms	-65 ░C	165 °C	Bayonet Lock	1	4 GHz	Bulkhead - Front Side Nut	Nickel	500 V	Connector, Nut, Washer	Solder	Wrench Clamp	Silver	Gold	Brass	Female Socket, Jack	BNC	RG-174
Cinch Connectivity Solutions Trompeter UBJ48	75 Ohms					500 MHz	Bulkhead			1 Connector, 1 Lockwasher, 1 Nut									TNC to TNC	Straight	Female Socket, TNC Jack	Jack to Jack	TNC Jack, Female Socket	Same Series	Female to Female
Cinch Connectivity Solutions Trompeter UBJ224	75 Ohms			Bayonet Lock		4 GHz	Bulkhead	Nickel		1 Connector, 1 Lockwasher, 1 Nut				Gold	Brass				BNC to BNC	Straight	BNC Jack, Female Socket	Jack to Jack	BNC Jack, Female Socket	Same Series	Female to Female
Cinch Connectivity Solutions Trompeter UBJ28	75 Ohms			Bayonet Lock		500 MHz	Bulkhead	Nickel		1 Connector, 1 Lockwasher, 1 Nut				Gold	Brass				BNC to BNC	Straight	BNC Jack, Female Socket	Jack to Jack	BNC Jack, Female Socket	Same Series	Female to Female
Cinch Connectivity Solutions Trompeter UBJ228	75 Ohms			Bayonet Lock		4 GHz	Bulkhead	Nickel		1 Connector, 1 Lockwasher, 1 Nut				Gold	Brass				BNC to BNC	Straight	BNC Jack, Female Socket	Jack to Jack	BNC Jack, Female Socket	Same Series	Female to Female	Isolated
Cinch Connectivity Solutions Trompeter UBJ27	75 Ohms	-65 ░C	165 °C	Bayonet Lock	1	4 GHz	Bulkhead - Rear Side Nut	Nickel	500 V	1 Connector, 1 Lockwasher, 1 Nut	Solder Cup	Solder	Silver	Gold	Brass	Female Socket, Jack	BNC									Isolated
Cinch Connectivity Solutions Trompeter UBJ226-004	75 Ohms			Bayonet Lock			Bulkhead												BNC to BNC	Straight	BNC Jack, Female Socket	Jack to Jack	BNC Jack, Female Socket	Same Series	Female to Female
Cinch Connectivity Solutions Trompeter UBJ220-009	75 Ohms	-65 ░C	165 °C	Bayonet Lock	1	4 GHz	Bulkhead - Front Side Nut	Nickel	500 V		Crimp	Crimp	Silver	Gold	Brass	Female Socket, Jack	BNC	Belden 8218, Essex 21-597, YR23023									1 pcs, 1 pcs, 1 pcs, 1 pcs	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter UBJ21	75 Ohms	-65 ░C	165 °C	Bayonet Lock	1	4 GHz	Bulkhead - Front Side Nut	Nickel	500 V	Connector, Nut, Washer	Solder Cup	Solder	Silver	Gold	Brass	Female Socket, Jack	BNC											Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter UBJ48GF	75 Ohms					500 MHz	Bulkhead	Nickel		1 Connector, 1 Lockwasher, 1 Nut				Gold	Brass				TNC to TNC	Straight	Female Socket, TNC Jack	Jack to Jack	TNC Jack, Female Socket	Same Series	Female to Female	Filter
