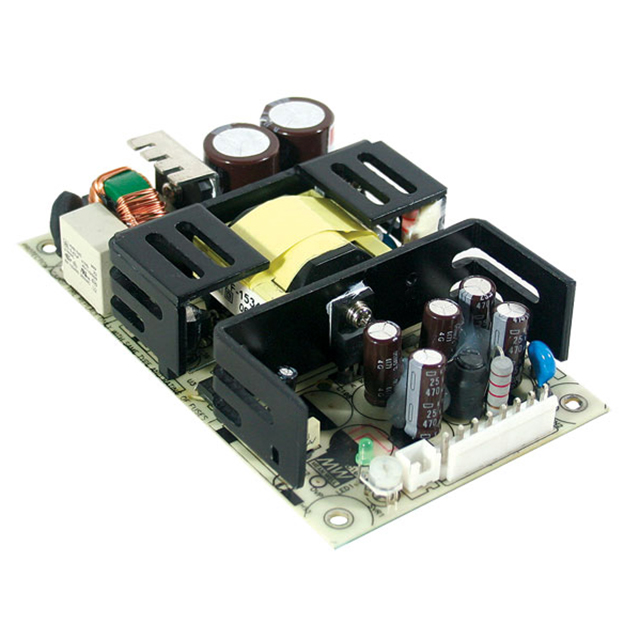

RPD-75A

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 12V 71W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 12V 71W

Technical Specifications

Parameters and characteristics for this part

Specification	RPD-75A

Applications	Medical
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	7 A
Current - Output 2	3 A
Efficiency	77 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	71 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	76.2 mm
Size / Dimension [y]	3 "
Size / Dimension [z]	31 mm
Size / Dimension [z]	1.22 in
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	5 V
Voltage - Output 2	12 V

Part	Voltage - Isolation	Applications	Voltage - Output 2	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Efficiency	Minimum Load Required	Current - Output 2	Type	Mounting Type	Current - Output 1	Number of Outputs	Features	Operating Temperature [Min]	Operating Temperature [Max]
MEAN WELL USA Inc. RPD-75B	4000 V	Medical	24 V	73 W	90 VAC 127 VDC	264 VAC 370 VDC	5 V	5 in	127 mm	31 mm	76.2 mm	1.22 in	3 "	CB CE cURus TUV	79 %		2 A	Open Frame	Chassis Mount	5 A	2	Adjustable Output Universal Input	-20 °C	70 °C
MEAN WELL USA Inc. RPD-75A	4000 V	Medical	12 V	71 W	90 VAC 127 VDC	264 VAC 370 VDC	5 V	5 in	127 mm	31 mm	76.2 mm	1.22 in	3 "	CB CE cURus TUV	77 %		3 A	Open Frame	Chassis Mount	7 A	2	Adjustable Output Universal Input	-20 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 2 Output 5V 12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
