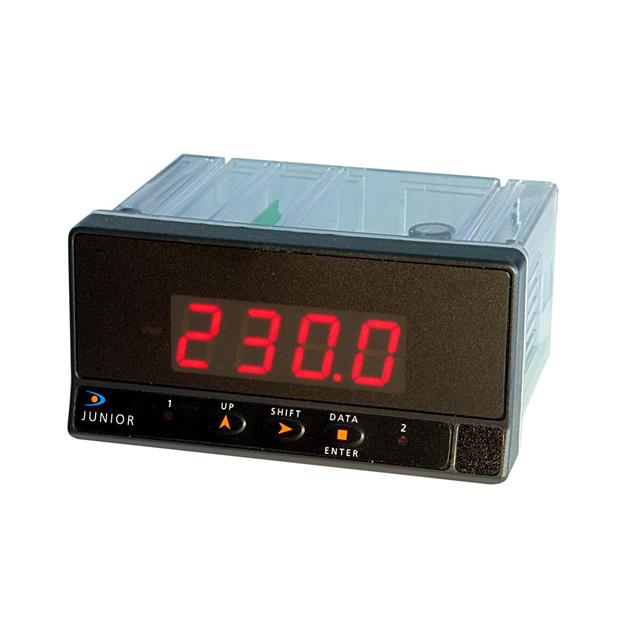

JR-P/2RE

Active

DITEL

PROCESS/TEMPERATURE METER, 1/8

Search across all available documentation for this part.

Active

DITEL

PROCESS/TEMPERATURE METER, 1/8

Technical Specifications

Parameters and characteristics for this part

Specification	JR-P/2RE

Display Characters - Height [z]	14 mm
Display Characters - Height [z]	0.551 in
Display Type	LED - Red Characters
Features	Excitation Supply
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range	Multiple
Measuring Type	Process, Resistance, Thermocouple
Number of Characters Per Row	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Output Type	Relay (2)
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Connector
Type	Multifunction Meter
Voltage - Supply [Max]	265 VDC, 265 VAC
Voltage - Supply [Min]	11 V, 20 VAC

PROCESS/TEMPERATURE METER, 1/8

Part	Number of Characters Per Row	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Type	Operating Temperature [Min]	Operating Temperature [Max]	Measuring Type	Display Type	Display Characters - Height [z]	Display Characters - Height [z]	Output Type	Termination Style	Measuring Range
DITEL JR-P/2RE	4	IP65 - Dust Tight, Water Resistant	11 V, 20 VAC	265 VDC, 265 VAC	92 mm	45 mm	Excitation Supply	Multifunction Meter	-10 °C	60 °C	Process, Resistance, Thermocouple	LED - Red Characters	14 mm	0.551 in	Relay (2)	Connector	Multiple

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 237.00

General part information

Multifunction Meter LED - Red Characters Display Panel Mount
