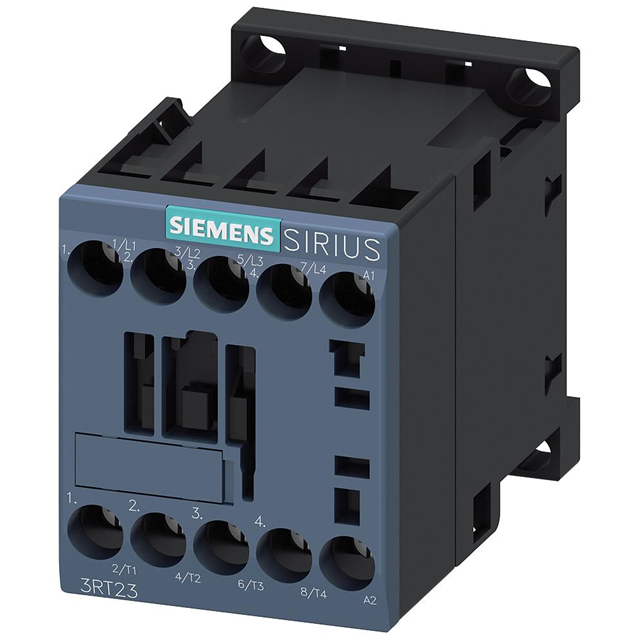

3RT23171AF00

Active

Siemens

CONTACTOR RES S00 20A 110VAC 4NO

Search across all available documentation for this part.

Active

Siemens

CONTACTOR RES S00 20A 110VAC 4NO

Technical Specifications

Parameters and characteristics for this part

Part	Contact Form	Coil Power	Termination Style	Features	Must Operate Voltage	Operate Time	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Contact Rating (Current)	Switching Voltage	Release Time
Siemens 3RT23172BB40	4PST-NO (4 Form A)	4 W	Screw Terminal	Auxiliary Contacts	19.2 VDC	100 ms	Chassis Mount DIN Rail	-25 °C	60 °C	24 VDC	22 A	690 VAC	13 ms
Siemens 3RT23172AH00	4PST-NO (4 Form A)	33 VA	Spring Terminal	Auxiliary Contacts	40.8 VAC	35 ms	Chassis Mount DIN Rail	-25 °C	60 °C	48 VAC/DC	22 A	690 VAC	13 ms
Siemens 3RT23172AP00	4PST-NO (4 Form A)	33 VA	Spring Terminal	Auxiliary Contacts	195.5 VAC	35 ms	Chassis Mount DIN Rail	-25 °C	60 °C	230 VAC	22 A	690 VAC	13 ms
Siemens 3RT23171BG40	4PST-NO (4 Form A)	4 W	Screw Terminal	Auxiliary Contacts	100 VDC	100 ms	Chassis Mount DIN Rail	-25 °C	60 °C	125 VDC	22 A	690 VAC	13 ms
Siemens 3RT23172AB00	4PST-NO (4 Form A)	33 VA	Spring Terminal	Auxiliary Contacts		35 ms	Chassis Mount DIN Rail	-25 °C	60 °C	24 VAC	22 A	690 VAC	13 ms
Siemens 3RT23171AF00	4PST-NO (4 Form A)	33 VA	Screw Terminal	Auxiliary Contacts	93.5 VAC	35 ms	Chassis Mount DIN Rail	-25 °C	60 °C	110 VAC/DC	22 A	690 VAC	13 ms
Siemens 3RT23171BA40	4PST-NO (4 Form A)	4 W	Screw Terminal	Auxiliary Contacts	9.6 VDC	100 ms	Chassis Mount DIN Rail	-25 °C	60 °C	12 VDC	22 A	690 VAC	13 ms
Siemens 3RT23171BM40	4PST-NO (4 Form A)	4 W	Screw Terminal	Auxiliary Contacts	176 VDC	100 ms	Chassis Mount DIN Rail	-25 °C	60 °C	220 VDC	22 A	690 VAC	13 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 113.44
