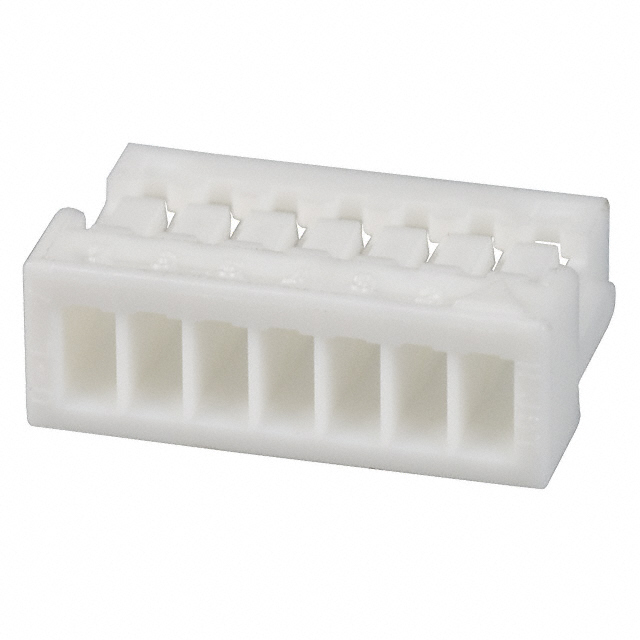

SHR-07V-S

Active

JST Sales America Inc.

CONN RCPT HSG 7POS 1.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 7POS 1.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	SHR-07V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Number of Rows	Mounting Type	Contact Type	Connector Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions	Pitch [x]	Pitch [x]	Insulation Material	Note
JST Sales America Inc. SHR-07V-S-B	1	Free Hanging (In-Line)	Female Socket	Receptacle	Crimp	-25 °C	85 °C	Natural	7	0.039 in	1 mm	Polybutylene Terephthalate (PBT)	Contacts Not Included
JST Sales America Inc. SHR-07V-S	1	Free Hanging (In-Line)	Female Socket	Receptacle	Crimp	-25 °C	85 °C	Natural	7	0.039 in	1 mm	Polybutylene Terephthalate (PBT)	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
