MAX9922EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION KIT FOR MAX9922
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX9922EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION KIT FOR MAX9922
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9922EVKIT+ | MAX9922 Series |
|---|---|---|
| -3db Bandwidth | 10 kHz | 10 kHz |
| Amplifier Type | Current Sense | Current Sense |
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 - Single | 1 - Single |
| Current - Input Bias | - | 1 pA |
| Current - Supply | - | 780 µA |
| Current - Supply (Main IC) | 780 µA | 780 µA |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Type | Single-Ended | Single-Ended |
| Package / Case | - | 10-MSOP, 10-TFSOP |
| Package / Case | - | 3 mm |
| Package / Case | - | 0.118 in |
| Slew Rate | 0.4 V/µs | 0.4 V/µs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-uMAX/uSOP |
| Utilized IC / Part | MAX9922 | MAX9922 |
| Voltage - Input Offset | - | 0.1 µV |
| Voltage - Supply Span (Max) | - | 5.5 V |
| Voltage - Supply Span (Min) | - | 2.85 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 74.49 | |
MAX9922 Series
EVALUATION KIT FOR MAX9922
| Part | Current - Supply (Main IC) | Board Type | Output Type | -3db Bandwidth | Slew Rate | Supplied Contents | Channels per IC | Amplifier Type | Utilized IC / Part | Voltage - Supply Span (Max) [Max] | Supplier Device Package | Current - Input Bias | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply Span (Min) [Min] | Voltage - Input Offset | Mounting Type | Number of Circuits | Package / Case | Package / Case [x] | Package / Case [x] | Current - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9922EVKIT+ | 780 µA | Fully Populated | Single-Ended | 10 kHz | 0.4 V/µs | Board(s) | 1 - Single | Current Sense | MAX9922 | |||||||||||||
Analog Devices Inc./Maxim Integrated MAX9922EUB+ | 10 kHz | 0.4 V/µs | Current Sense | 5.5 V | 10-uMAX/uSOP | 1 pA | 85 °C | -40 °C | 2.85 V | 0.1 µV | Surface Mount | 1 | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | 780 µA | ||||||
Analog Devices Inc./Maxim Integrated MAX9922EUB+T | 10 kHz | 0.4 V/µs | Current Sense | 5.5 V | 10-uMAX/uSOP | 1 pA | 85 °C | -40 °C | 2.85 V | 0.1 µV | Surface Mount | 1 | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | 780 µA |
Description
General part information
MAX9922 Series

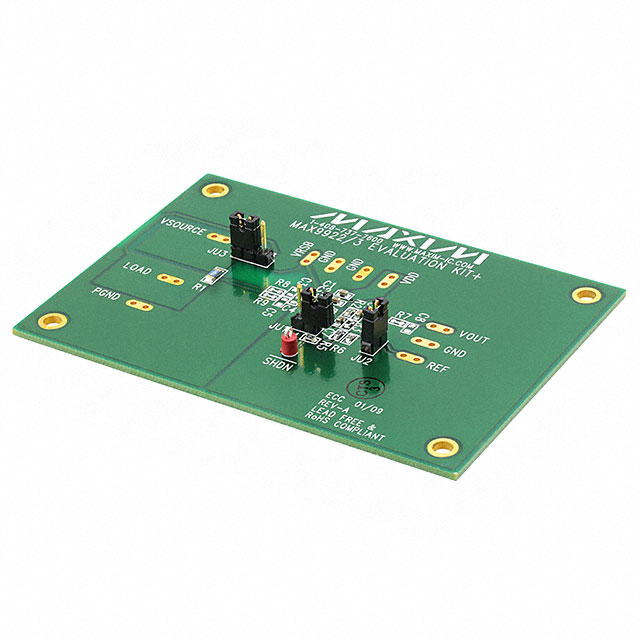

MAX9922 1 - Single Channels per IC Current Sense Amplifier Evaluation Board
