51-426.036

Active

EAO

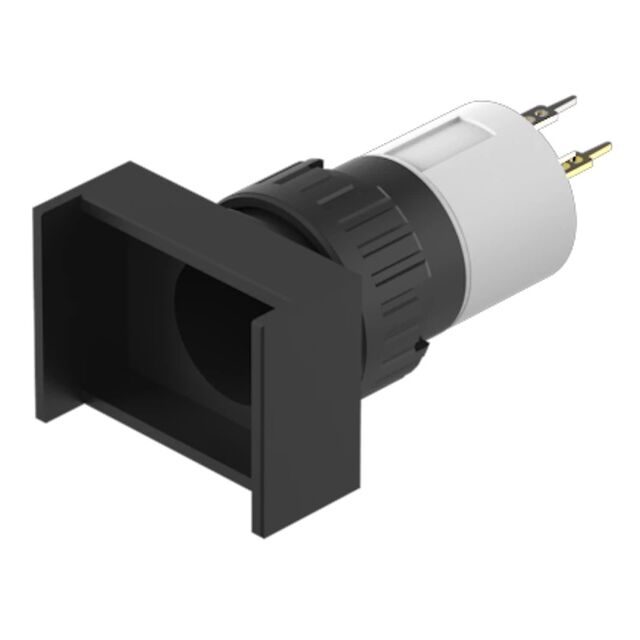

SWITCH PB SPST-NC 0.1A 42V

Search across all available documentation for this part.

Active

EAO

SWITCH PB SPST-NC 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	51-426.036

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	SPST-NC
Current Rating (Amps)	100 mA
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

SWITCH PB SPST-NC 0.1A 42V

Part	Circuit	Termination Style	Panel Cutout Dimensions [diameter]	Type	Actuator Marking	Voltage Rating - AC	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Ingress Protection	Actuator Type	Mounting Type	Current Rating (Amps)	Mechanical Life
EAO 51-426.036	SPST-NC	PC Pin, Solder Lug	16 mm	Standard	No Marking	42 V	On-Mom	55 °C	-25 °C	42 V	IP65 - Dust Tight, Water Resistant	Rectangular, Button (Not Included)	Panel Mount, Front	100 mA	5000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Front
