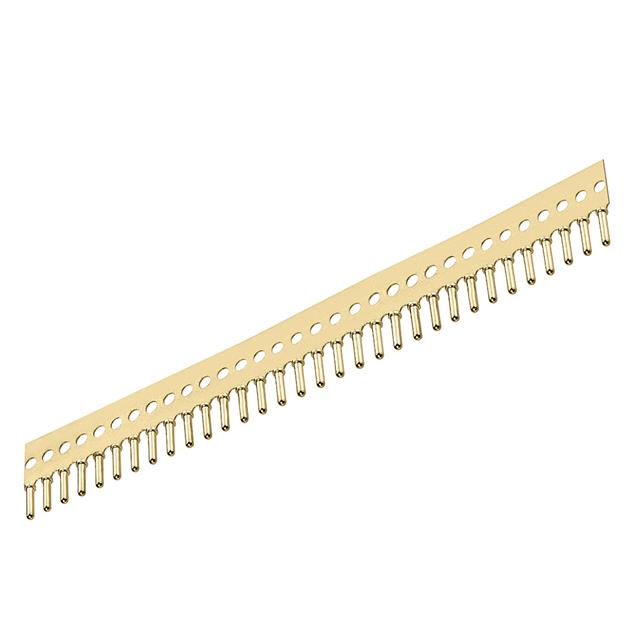

D01-9823205

Active

Harwin Inc.

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSub Miniature Sockets Spec Sheet Datasheet

D01-9823205

Active

Harwin Inc.

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsSub Miniature Sockets Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 12.17
		15	$ 10.78
		30	$ 10.37
		60	$ 9.95
		105	$ 9.40
		255	$ 8.57
		510	$ 8.02
		1005	$ 7.35
Newark	Each	100	$ 11.38
		250	$ 10.20
		500	$ 9.61
		1000	$ 8.43
		2500	$ 8.02

Description

General part information

D01-982 Series

Pin Receptacle Connector 0.016" ~ 0.020" (0.41mm ~ 0.51mm) No Tail Solder

Documents

Technical documentation and resources

Sub Miniature Sockets Spec Sheet

Datasheet

Specification	D01-9823205	D01-982 Series

Contact Finish	Gold	Gold
Contact Material	Beryllium Copper	Beryllium Copper
Features	Strip of 32	Strip of 4, Strip of 32, Strip of 12, Strip of 20, Strip of 14, Strip of 10
Flange Diameter [diameter]	1.45 mm	1.45 mm
Flange Diameter [diameter]	0.057 in	0.057 in
Insertion Force [Max]	6 N	6 N
Insertion Force [Min]	2 N	2 N
Length - Overall	0.193 in	0.193 in
Length - Overall	4.9 mm	4.9 mm
Mounting Hole Diameter [Max] [diameter]	1.09 mm	1.09 mm
Mounting Hole Diameter [Max] [diameter]	0.043 in	0.043 in
Mounting Hole Diameter [Min] [diameter]	0.039 in	0.039 in
Mounting Hole Diameter [Min] [diameter]	0.99 mm	0.99 mm
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-55 °C	-55 °C
Socket Depth	4.45 mm	4.45 mm
Socket Depth	0.175 in	0.175 in
Tail Type	No Tail	No Tail
Termination	Solder	Solder

Part	Length - Overall	Length - Overall	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]	Tail Type	Operating Temperature [Max]	Operating Temperature [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Features	Contact Finish	Insertion Force [Min]	Insertion Force [Max]	Termination	Contact Material
Harwin Inc. D01-9820401	0.193 in	4.9 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	No Tail	100 °C	-55 °C	1.45 mm	0.057 in	4.45 mm	0.175 in	Strip of 4	Gold	2 N	6 N	Solder	Beryllium Copper
Harwin Inc. D01-9823201	0.193 in	4.9 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	No Tail	100 °C	-55 °C	1.45 mm	0.057 in	4.45 mm	0.175 in	Strip of 32	Gold	2 N	6 N	Solder	Beryllium Copper
Harwin Inc. D01-9821201	0.193 in	4.9 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	No Tail	100 °C	-55 °C	1.45 mm	0.057 in	4.45 mm	0.175 in	Strip of 12	Gold	2 N	6 N	Solder	Beryllium Copper
Harwin Inc. D01-9823205	0.193 in	4.9 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	No Tail	100 °C	-55 °C	1.45 mm	0.057 in	4.45 mm	0.175 in	Strip of 32	Gold	2 N	6 N	Solder	Beryllium Copper
Harwin Inc. D01-9822001	0.193 in	4.9 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	No Tail	100 °C	-55 °C	1.45 mm	0.057 in	4.45 mm	0.175 in	Strip of 20	Gold	2 N	6 N	Solder	Beryllium Copper
Harwin Inc. D01-9821401	0.193 in	4.9 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	No Tail	100 °C	-55 °C	1.45 mm	0.057 in	4.45 mm	0.175 in	Strip of 14	Gold	2 N	6 N	Solder	Beryllium Copper
Harwin Inc. D01-9821601	0.193 in	4.9 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	No Tail	100 °C	-55 °C	1.45 mm	0.057 in	4.45 mm	0.175 in		Gold	2 N	6 N	Solder	Beryllium Copper
Harwin Inc. D01-9821001	0.193 in	4.9 mm	0.039 in	0.99 mm	1.09 mm	0.043 in	No Tail	100 °C	-55 °C	1.45 mm	0.057 in	4.45 mm	0.175 in	Strip of 10	Gold	2 N	6 N	Solder	Beryllium Copper
