BZV03/Z0000/06

Active

BULGIN LIMITED

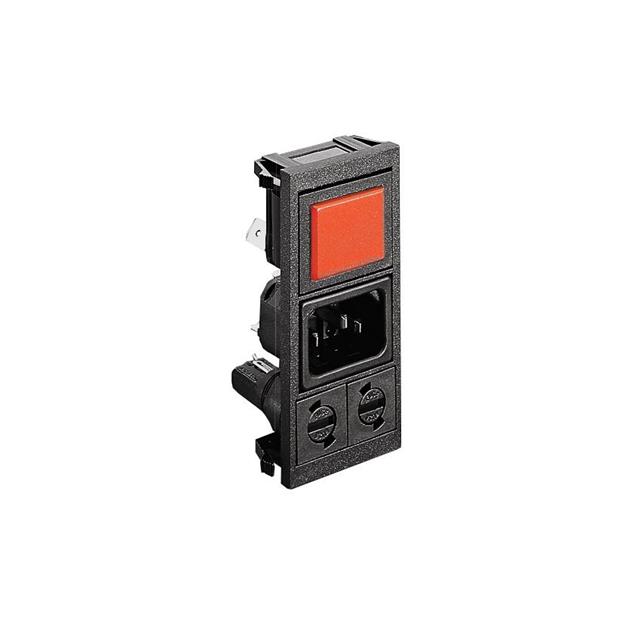

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BZV03/Z0000/06	BZV03/Z Series

Accomodates a Fuse	True	True, False
Approval Agency	VDE, CSA, UL, ENEC	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Twin Fused
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	34.4 mm	34.4 mm
Panel Cutout Dimensions [y]	76.5 mm	48.4 - 76.5 mm
Panel Thickness [Max]	3 mm	3 mm
Panel Thickness [Max]	0.118 in	0.118 in
Panel Thickness [Min]	0.039 in	0.039 in
Panel Thickness [Min]	1 mm	1 mm
Switch Features	Switch On-Off	Illuminated, Switch On-Off
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

BZV03/Z Series

POLYSNAP INLET, TWIN FUSE HOLDER

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Voltage Rating - Appliance Inlet	Connector Type	Material Flammability Rating	Approval Agency	Mounting Type	Termination	Termination	Termination	Current Rating - Appliance Inlet	Connector Style	Switch Features	Fuse Holder, Drawer	Filter Type
BULGIN LIMITED BZV03/Z0000/07	76.5 mm	34.4 mm	3 mm	0.118 in	0.039 in	1 mm	250 VAC	Receptacle, Male Blades - Module	UL94 V-0	CSA, ENEC, UL, VDE	Panel Mount, Snap-In	0.25 in	6.3 mm	Quick Connect	10 A	IEC 320-C14	Illuminated, Switch On-Off	Fuse Holder, Twin Fused	Unfiltered - Commercial
BULGIN LIMITED BZV03/Z0000/75	76.5 mm	34.4 mm	3 mm	0.118 in	0.039 in	1 mm	250 VAC	Receptacle, Male Blades - Module	UL94 V-0	CSA, ENEC, UL, VDE	Panel Mount, Snap-In	0.25 in	6.3 mm	Quick Connect	10 A	IEC 320-C14	Switch On-Off	Fuse Holder, Twin Fused	Unfiltered - Commercial
BULGIN LIMITED BZV03/Z0000/06	76.5 mm	34.4 mm	3 mm	0.118 in	0.039 in	1 mm	250 VAC	Receptacle, Male Blades - Module	UL94 V-0	CSA, ENEC, UL, VDE	Panel Mount, Snap-In	0.25 in	6.3 mm	Quick Connect	10 A	IEC 320-C14	Switch On-Off	Fuse Holder, Twin Fused	Unfiltered - Commercial
BULGIN LIMITED BZV03/Z0000/01	48.4 mm	34.4 mm	3 mm	0.118 in	0.039 in	1 mm	250 VAC	Receptacle, Male Blades - Module	UL94 V-0	CSA, ENEC, UL, VDE	Panel Mount, Snap-In	0.25 in	6.3 mm	Quick Connect	10 A	IEC 320-C14	Switch On-Off		Unfiltered - Commercial
BULGIN LIMITED BZV03/Z0000/02	48.4 mm	34.4 mm	3 mm	0.118 in	0.039 in	1 mm	250 VAC	Receptacle, Male Blades - Module	UL94 V-0	CSA, ENEC, UL, VDE	Panel Mount, Snap-In	0.25 in	6.3 mm	Quick Connect	10 A	IEC 320-C14	Switch On-Off		Unfiltered - Commercial
BULGIN LIMITED BZV03/Z0000/21	76.5 mm	34.4 mm	3 mm	0.118 in	0.039 in	1 mm	250 VAC	Receptacle, Male Blades - Module	UL94 V-0	CSA, ENEC, UL, VDE	Panel Mount, Snap-In	0.25 in	6.3 mm	Quick Connect	10 A	IEC 320-C14	Switch On-Off	Fuse Holder, Twin Fused	Unfiltered - Commercial
BULGIN LIMITED BZV03/Z0000/04	48.4 mm	34.4 mm	3 mm	0.118 in	0.039 in	1 mm	250 VAC	Receptacle, Male Blades - Module	UL94 V-0	CSA, ENEC, UL, VDE	Panel Mount, Snap-In	0.25 in	6.3 mm	Quick Connect	10 A	IEC 320-C14		Fuse Holder, Twin Fused	Unfiltered - Commercial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.83
		10	$ 18.88

Description

General part information

BZV03/Z Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
