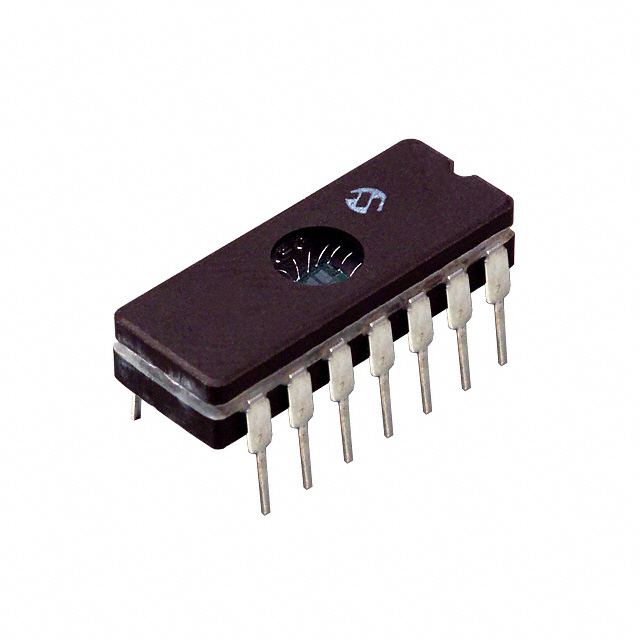

TC9401EJD
ActiveMicrochip Technology
IC F/V & V/F CONV 100KHZ 14CDIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC9401EJD
ActiveMicrochip Technology
IC F/V & V/F CONV 100KHZ 14CDIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TC9401EJD | TC9401 Series |
|---|---|---|
| - | - | |
| Frequency - Max [Max] | 100 kHz | 100 kHz |
| Full Scale | 40 ppm/°C | 40 ppm/°C |
| Linearity | 0.02 % | 0.02 % |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 14-CDIP | 14-CDIP, 14-DIP |
| Package / Case | - | 7.62 mm |
| Package / Case | - | 0.3 " |
| Supplier Device Package | 14-CerDIP | 14-CerDIP |
| Type | Volt to Frequency and Frequency to Volt | Volt to Frequency and Frequency to Volt |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TC9401 Series
IC F/V & V/F CONV 100KHZ 14CDIP
| Part | Frequency - Max [Max] | Supplier Device Package | Linearity | Package / Case | Type | Full Scale | Mounting Type | Package / Case [y] | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|
Microchip Technology TC9401EJD | 100 kHz | 14-CerDIP | 0.02 % | 14-CDIP | Volt to Frequency and Frequency to Volt | 40 ppm/°C | Through Hole | ||
Microchip Technology TC9401CPD | |||||||||
Microchip Technology TC9401CPD | 100 kHz | 0.02 % | 14-DIP | Volt to Frequency and Frequency to Volt | 40 ppm/°C | Through Hole | 7.62 mm | 0.3 " |
Description
General part information
TC9401 Series
Volt to Frequency and Frequency to Volt Converter IC 100 kHz ±0.02% 14-CERDIP
