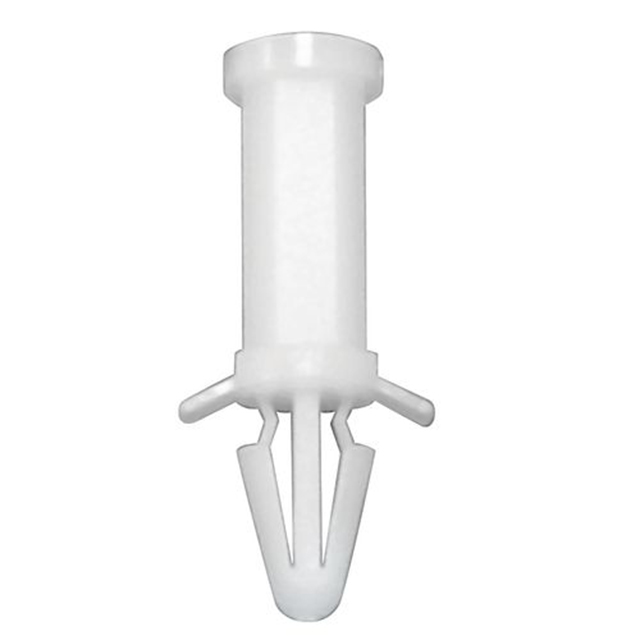

CBTFS045A
ActiveEssentra Access Solutions
PCB SUPPORT,TOP HOLE:SNAP LOCK 4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CBTFS045A
ActiveEssentra Access Solutions
PCB SUPPORT,TOP HOLE:SNAP LOCK 4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CBTFS045A |
|---|---|
| Between Board Height | 1.378 in |
| Between Board Height | 35 mm |
| Features | M3 Thread |
| Holding Type | Snap Lock |
| Material | Nylon |
| Mounting Type | Screw Mount |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness [Max] | 1.7 mm |
| Support Panel Thickness [Max] | 0.067 " |
| Support Panel Thickness [Min] | 0.047 " |
| Support Panel Thickness [Min] | 1.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.94 | |
| 5 | $ 0.78 | |||
| 10 | $ 0.70 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.55 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.47 | |||
Description
General part information
CBTFS Series
Board Support Snap Lock / Screw Mount Nylon 1.378" (35.00mm)
