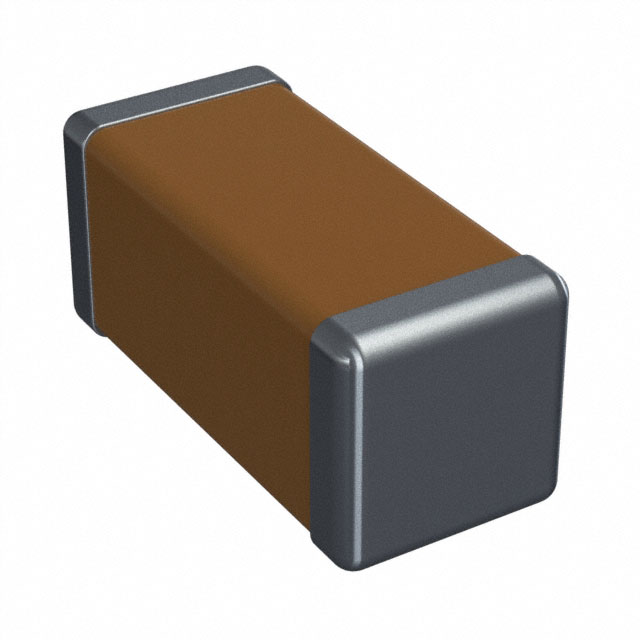

CDR03BX223BKWM

Active

KEMET

CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 100V, 10% +TOL, 10% -TOL, BX, 15% TC, 0.022UF, SURFACE MOUNT, 1808, CHIP

Search across all available documentation for this part.

Active

KEMET

CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 100V, 10% +TOL, 10% -TOL, BX, 15% TC, 0.022UF, SURFACE MOUNT, 1808, CHIP

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	Thickness (Max) [Max]	Thickness (Max) [Max]	Tolerance	Applications	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Mounting Type	Failure Rate
KEMET CDR03BX683AKUS7185	50 VDC	0.08 in	2.03 mm	10 %	High Reliability	1808	4520 Metric	0.08 "	2.03 mm	0.18 "	4.57 mm	0.068 µF	-55 °C	125 °C	BX	MLCC Surface Mount	S (0.001%)
KEMET CDR03BP471BJUS	100 V	0.08 in	2.03 mm	5 %	High Reliability	1808	4520 Metric	0.08 "	2.03 mm	0.18 "	4.57 mm	470 pF	-55 °C	125 °C	BP	MLCC Surface Mount	S (0.001%)
KEMET CDR03BX223BKWM	100 V	0.08 in	2.03 mm	10 %	High Reliability	1808	4520 Metric	0.08 "	2.03 mm	0.18 "	4.57 mm	0.022 µF	-55 °C	125 °C	BX	MLCC Surface Mount	M (1%)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 0.67

General part information

0.022 µF ±10% 100V Ceramic Capacitor BX 1808 (4520 Metric)
