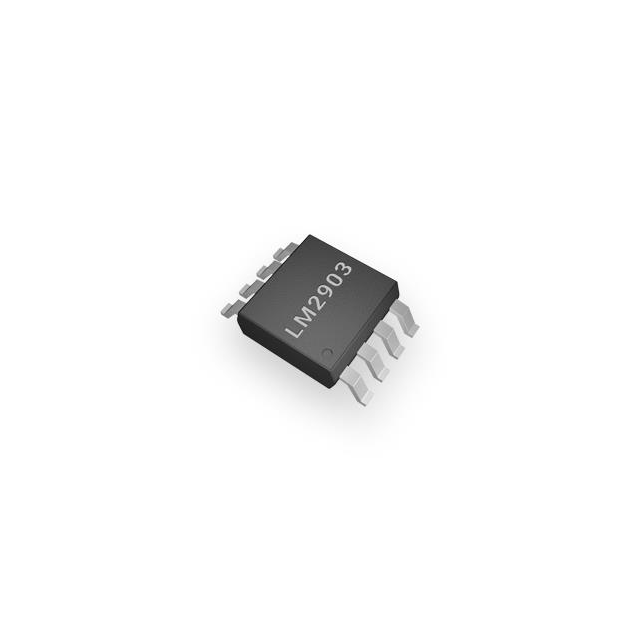

LM2903XK

Active

Runic Technology

IC COMPARATOR 2 GEN PUR 8SOIC

Search across all available documentation for this part.

Active

Runic Technology

IC COMPARATOR 2 GEN PUR 8SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	LM2903XK

Current - Input Bias (Max)	50 pA
Current - Output (Typ)	23 mA
Current - Quiescent (Max) [Max]	180 µA
Mounting Type	Surface Mount
Number of Elements	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	Open-Drain
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Supplier Device Package	8-SOIC
Type	General Purpose
Voltage - Input Offset (Max)	3.5 mV
Voltage - Supply, Single/Dual (±) [Max]	36 V
Voltage - Supply, Single/Dual (±) [Min]	3.3 V

IC COMPARATOR 2 GEN PUR 8SOIC

Part	Output Type	Supplier Device Package	Type	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Mounting Type	Current - Output (Typ)	Voltage - Input Offset (Max)	Number of Elements	Current - Quiescent (Max) [Max]	Current - Input Bias (Max)
Runic Technology LM2903XK	Open-Drain	8-SOIC	General Purpose	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	3.3 V	36 V	Surface Mount	23 mA	3.5 mV	2	180 µA	50 pA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Comparator General Purpose Open-Drain 8-SOIC

Technical documentation and resources

No documents available
