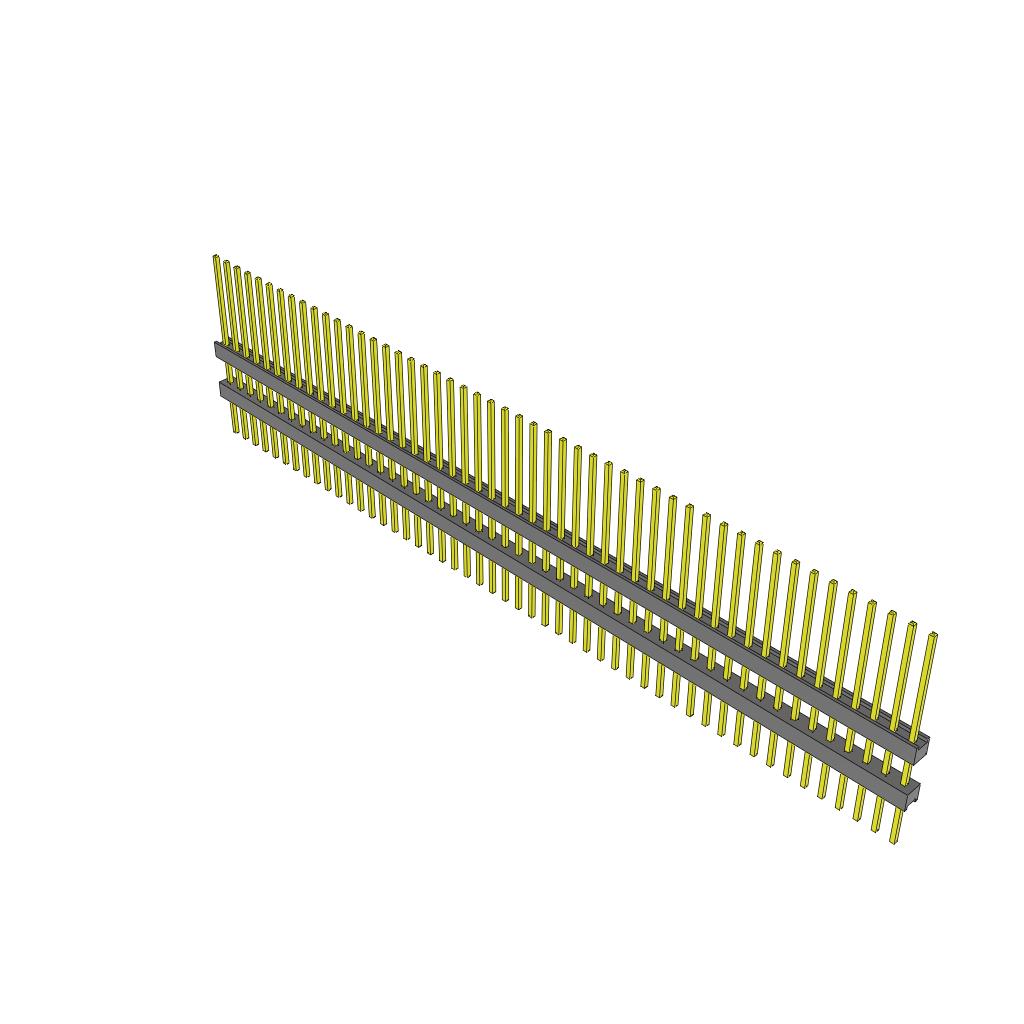

ZW-50-13-G-S-380-270

Active

Samtec Inc.

CONN BRD STACK .100" 50POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch +2

ZW-50-13-G-S-380-270

Active

Samtec Inc.

CONN BRD STACK .100" 50POS

Deep-Dive with AI

DocumentsDatasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.05

Description

General part information

ZW-50-13 Series

50 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole

Documents

Technical documentation and resources

Datasheet

Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch

XW Print

Datasheet

ZW Datasheet

Datasheet

Specification	ZW-50-13-G-S-380-270	ZW-50-13 Series

Color	Black	Black
Contact Finish - Post (Mating)	Gold	Tin, Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám	0.25 - 0.76 Ám
Contact Finish Thickness - Post (Mating)	10 Áin	10 - 30 Áin
Length - Overall Pin [x]	31.242 mm	31.242 mm
Length - Overall Pin [x]	1.23 in	1.23 in
Length - Post (Mating)	-	0.1 - 0.5 in
Length - Post (Mating)	-	2.54 - 12.7 mm
Length - Stack Height	-	21.463 - 24.892 mm
Length - Stack Height	-	0.845 - 0.98 in
Length - Stack Height [x]	0.38 in	0.38 - 0.92 in
Length - Stack Height [x]	9.652 mm	9.652 - 23.368 mm
Length - Tail	0.27 in	0.145 - 0.62 in
Length - Tail	6.858 mm	0.23 - 15.748 mm
Length - Tail	-	0.18 - 0.343 in
Length - Tail	-	4.572 - 8.712 mm
Length - Tail	-	5.842 mm
Length - Tail	-	8.89 - 13.462 mm
Length - Tail	-	0.35 - 0.53 in
Length - Tail	-	0.15 in
Length - Tail	-	3.81 mm
Mounting Type	Through Hole	Through Hole
Number of Positions	50	50 - 100
Number of Rows	1	1 - 2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	-	0.1 in
Row Spacing	-	2.54 mm
Termination	Solder	Solder

Part

Length - Stack Height [x]

Number of Positions

Row Spacing [x]

Row Spacing

Pitch [x]

Color

Mounting Type

Length - Post (Mating) [x]

Number of Rows

Length - Tail [x]

Length - Tail

Contact Finish - Post (Mating)

Termination

Length - Overall Pin [x]

Length - Tail

Contact Finish Thickness - Post (Mating)

Length - Tail [x]

Length - Tail

Length - Tail [custom]

Length - Stack Height [z]

Samtec Inc.

ZW-50-13-T-D-550-340

13.97 mm

0.55 in

100

0.1 in

2.54 mm

0.1 in

Black

Through Hole

0.34 in

8.636 mm

0.34 in

8.636 mm

Tin

Solder

31.242 mm

1.23 in

Samtec Inc.

ZW-50-13-G-S-575-276

14.605 mm

0.575 in

2.54 mm

0.1 in

Black

Through Hole

0.379 in

9.627 mm

7.01 mm

Gold

Solder

31.242 mm

1.23 in

0.276 in

0.25 Ám

10 Áin

Samtec Inc.

ZW-50-13-G-D-500-620

12.7 mm

0.5 in

100

0.1 in

2.54 mm

0.1 in

Black

Through Hole

0.11 in

2.794 mm

15.748 mm

Gold

Solder

31.242 mm

1.23 in

0.62 in

0.25 Ám

10 Áin

Samtec Inc.

ZW-50-13-T-D-740-343

18.796 mm

0.74 in

100

0.1 in

2.54 mm

0.1 in

Black

Through Hole

0.147 in

3.734 mm

0.343 "

Tin

Solder

31.242 mm

1.23 in

8.712 mm

Samtec Inc.

ZW-50-13-S-D-920-190

23.368 mm

0.92 in

100

0.1 in

2.54 mm

0.1 in

Black

Through Hole

0.12 in

3.048 mm

4.826 mm

Gold

Solder

31.242 mm

1.23 in

0.19 in

0.76 µm

30 µin

Samtec Inc.

ZW-50-13-T-S-590-160

14.986 mm

0.59 in

2.54 mm

0.1 in

Black

Through Hole

0.48 in

12.192 mm

4.064 mm

Tin

Solder

31.242 mm

1.23 in

0.16 in

Samtec Inc.

ZW-50-13-L-D-840-240

21.336 mm

0.84 in

100

0.1 in

2.54 mm

0.1 in

Black

Through Hole

0.15 in

3.81 mm

6.096 mm

Gold

Solder

31.242 mm

1.23 in

0.24 in

0.25 Ám

10 Áin

Samtec Inc.

ZW-50-13-G-S-830-300

21.082 mm

0.83 in

2.54 mm

0.1 in

Black

Through Hole

0.1 in

2.54 mm

7.62 mm

Gold

Solder

31.242 mm

1.23 in

0.3 in

0.25 Ám

10 Áin

Samtec Inc.

ZW-50-13-G-S-380-270

9.652 mm

0.38 in

2.54 mm

0.1 in

Black

Through Hole

6.858 mm

Gold

Solder

31.242 mm

1.23 in

0.27 in

0.25 Ám

10 Áin

Samtec Inc.

ZW-50-13-G-S-830-290

21.082 mm

0.83 in

2.54 mm

0.1 in

Black

Through Hole

0.11 in

2.794 mm

0.29 in

Gold

Solder

31.242 mm

1.23 in

0.25 Ám

10 Áin

7.366 mm

Part	Length - Stack Height [x]	Length - Stack Height [x]	Number of Positions	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Color	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Rows	Length - Tail [x]	Length - Tail	Contact Finish - Post (Mating)	Termination	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Tail	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Tail [x]
Samtec Inc. ZW-50-13-T-D-550-340	13.97 mm	0.55 in	100	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Through Hole	0.34 in	8.636 mm	2	0.34 in	8.636 mm	Tin	Solder	31.242 mm	1.23 in
Samtec Inc. ZW-50-13-G-S-575-276	14.605 mm	0.575 in	50			2.54 mm	0.1 in	Black	Through Hole	0.379 in	9.627 mm	1		7.01 mm	Gold	Solder	31.242 mm	1.23 in	0.276 in	0.25 Ám	10 Áin
Samtec Inc. ZW-50-13-G-D-500-620	12.7 mm	0.5 in	100	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Through Hole	0.11 in	2.794 mm	2		15.748 mm	Gold	Solder	31.242 mm	1.23 in	0.62 in	0.25 Ám	10 Áin
Samtec Inc. ZW-50-13-T-D-740-343	18.796 mm	0.74 in	100	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Through Hole	0.147 in	3.734 mm	2	0.343 "		Tin	Solder	31.242 mm	1.23 in				8.712 mm
Samtec Inc. ZW-50-13-S-D-920-190	23.368 mm	0.92 in	100	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Through Hole	0.12 in	3.048 mm	2		4.826 mm	Gold	Solder	31.242 mm	1.23 in	0.19 in	0.76 µm	30 µin
Samtec Inc. ZW-50-13-T-S-590-160	14.986 mm	0.59 in	50			2.54 mm	0.1 in	Black	Through Hole	0.48 in	12.192 mm	1		4.064 mm	Tin	Solder	31.242 mm	1.23 in	0.16 in
Samtec Inc. ZW-50-13-L-D-840-240	21.336 mm	0.84 in	100	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Through Hole	0.15 in	3.81 mm	2		6.096 mm	Gold	Solder	31.242 mm	1.23 in	0.24 in	0.25 Ám	10 Áin
Samtec Inc. ZW-50-13-G-S-830-300	21.082 mm	0.83 in	50			2.54 mm	0.1 in	Black	Through Hole	0.1 in	2.54 mm	1		7.62 mm	Gold	Solder	31.242 mm	1.23 in	0.3 in	0.25 Ám	10 Áin
Samtec Inc. ZW-50-13-G-S-380-270	9.652 mm	0.38 in	50			2.54 mm	0.1 in	Black	Through Hole			1		6.858 mm	Gold	Solder	31.242 mm	1.23 in	0.27 in	0.25 Ám	10 Áin
Samtec Inc. ZW-50-13-G-S-830-290	21.082 mm	0.83 in	50			2.54 mm	0.1 in	Black	Through Hole	0.11 in	2.794 mm	1	0.29 in		Gold	Solder	31.242 mm	1.23 in		0.25 Ám	10 Áin	7.366 mm
