MTSMC-H5-IP
ObsoleteMulti-Tech Systems Inc.
RF TXRX MODULE CELL U.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

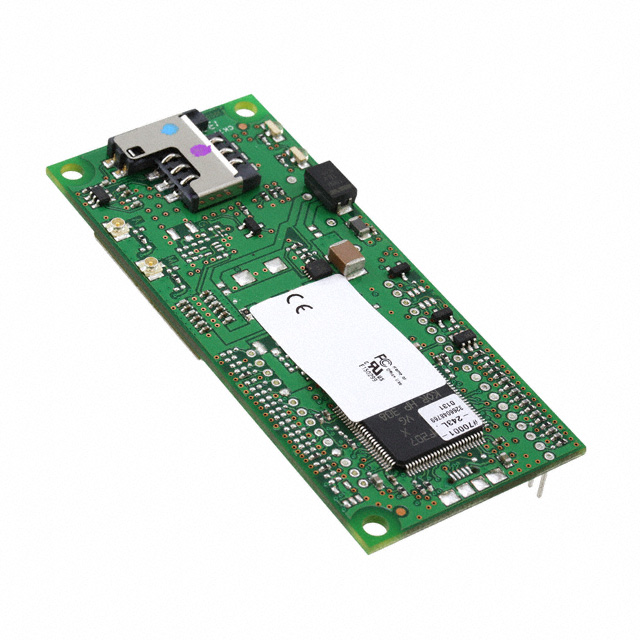

MTSMC-H5-IP
ObsoleteMulti-Tech Systems Inc.
RF TXRX MODULE CELL U.FL SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTSMC-H5-IP |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 502 mA |
| Current - Transmitting | 502 mA |
| Data Rate | 5.76 Mbps |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Package / Case | Module |
| Power - Output | 32 dBm |
| Protocol | 2G/3G HSPA+ (AT&T/T-Mobile) |
| RF Family/Standard | Cellular |
| Sensitivity | -110 dBm |
| Serial Interfaces | UART, USB |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 3.3 V |
MTSMC-H5 Series
| Part | RF Family/Standard | Serial Interfaces | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Protocol | Package / Case | Sensitivity | Power - Output | Data Rate | Current - Transmitting | Antenna Type | Current - Receiving |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Multi-Tech Systems Inc. | Cellular | USB | -35 °C | 85 °C | Surface Mount | 5 V | 3.3 V | 2G/3G HSPA+ (AT&T/T-Mobile) | Module | ||||||
Multi-Tech Systems Inc. | Cellular | UART USB | -35 °C | 85 °C | Surface Mount | 5 V | 3.3 V | 2G/3G HSPA+ (AT&T/T-Mobile) | Module | -110 dBm | 32 dBm | 5.76 Mbps | 502 mA | Antenna Not Included U.FL | 502 mA |
Multi-Tech Systems Inc. | Cellular | Serial UART USB | -35 °C | 85 °C | Through Hole | 5 V | 3.3 V | 2G/3G HSPA+ GPS (AT&T/T-Mobile) | Module | 154 mA | Antenna Not Included U.FL | 154 mA | |||
Multi-Tech Systems Inc. | Cellular Navigation | UART USB | -35 °C | 85 °C | Surface Mount | 5 V | 3.3 V | 2G/3G HSPA+ GPS (AT&T/T-Mobile) | Module | -110 dBm | 32 dBm | 5.76 Mbps | 580 mA | Antenna Not Included U.FL | 580 mA |
Multi-Tech Systems Inc. | Cellular | USB | -35 °C | 85 °C | Surface Mount | 5 V | 3.3 V | 2G/3G HSPA+ (AT&T/T-Mobile) | Module | 397 mA | Antenna Not Included U.FL | 397 mA | |||
Multi-Tech Systems Inc. | Cellular | UART USB | -35 °C | 85 °C | Surface Mount | 5 V | 3.3 V | 2G/3G HSPA+ (AT&T/T-Mobile) | Module | -110 dBm | 32 dBm | 5.76 Mbps | 397 mA | Antenna Not Included U.FL | 397 mA |
Multi-Tech Systems Inc. | Cellular | UART USB | -35 °C | 85 °C | Surface Mount | 5 V | 3.3 V | 2G/3G HSPA+ (AT&T/T-Mobile) | Module | -110 dBm | 32 dBm | 5.76 Mbps | 502 mA | Antenna Not Included U.FL | 502 mA |
Multi-Tech Systems Inc. | Cellular | USB | -35 °C | 85 °C | Surface Mount | 5 V | 3.3 V | 2G/3G HSPA+ (AT&T/T-Mobile) | Module | 397 mA | Antenna Not Included U.FL | 397 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MTSMC-H5 Series
Cellular 2G/3G HSPA+ (AT&T/T-Mobile) Transceiver Module 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz Antenna Not Included, U.FL Surface Mount
