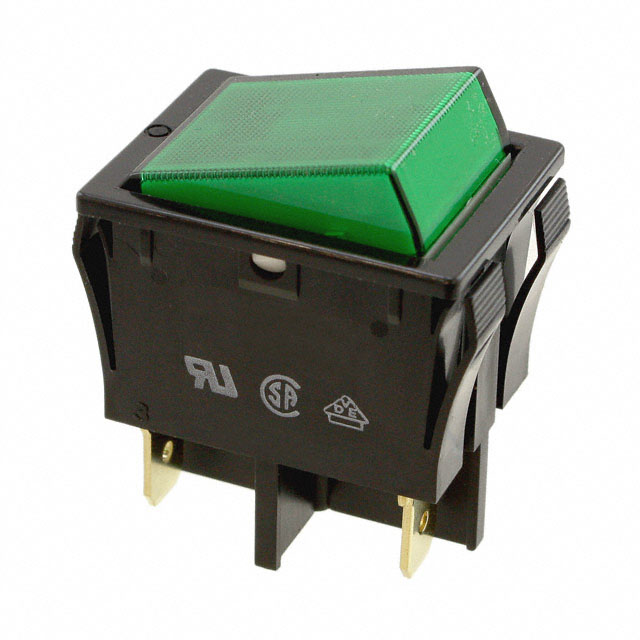

A8A-213-1

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

SWITCH ROCKER DPST 16A 125V

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mechanical Life	Electrical Life	Approval Agency	Actuator Type	Mounting Type	Circuit	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Actuator Marking	Voltage Rating - AC	Color - Actuator/Cap	Current Rating (Amps)	Illumination Type, Color	Termination Style
Omron Electronics Inc-EMC Div A8A-213-1	30 mm	22 mm	40000 Cycles	20000 Steps	CSA, EN, UL	Flat - Illuminated	Panel Mount, Snap-In	DPST	On-Off	50 °C	-25 °C	IP00	No Marking	125 V	Green	16 A	Green, Neon	Quick Connect - 0.250" (6.3mm)
Omron Electronics Inc-EMC Div A8A-213-A	30 mm	22 mm	40000 Cycles	20000 Steps	CSA, EN, UL	Flat - Illuminated	Panel Mount, Snap-In	DPST	On-Off	50 °C	-25 °C	IP00	No Marking	125 V	Green	16 A	Green, Neon	Quick Connect - 0.250" (6.3mm)
Omron Electronics Inc-EMC Div A8A-213-G	30 mm	22 mm	40000 Cycles	20000 Steps	CSA, EN, UL	Flat - Illuminated	Panel Mount, Snap-In	DPST	On-Off	50 °C	-25 °C	IP00	No Marking	125 V	Green	16 A	Green, Neon	Quick Connect - 0.250" (6.3mm)
Omron Electronics Inc-EMC Div A8A-213-2	30 mm	22 mm	40000 Cycles	20000 Steps	CSA, EN, UL	Flat - Illuminated	Panel Mount, Snap-In	DPST	On-Off	50 °C	-25 °C	IP00	No Marking	125 V	Green	16 A	Green, Neon	Quick Connect - 0.250" (6.3mm)
