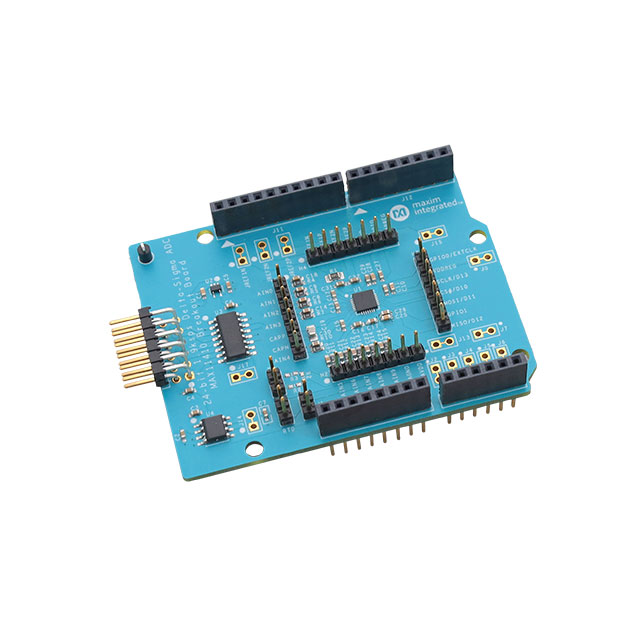

MAX11410 BREAKOUT BOARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX11410BOB#
ActiveAnalog Devices Inc./Maxim Integrated
MAX11410 BREAKOUT BOARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11410BOB# | MAX11410 Series |
|---|---|---|
| Architecture | - | Sigma-Delta |
| Configuration | - | MUX-PGA-ADC |
| Contents | Board(s) | Board(s), Cable(s) |
| Data Interface | - | SPI |
| Features | - | PGA |
| Function | Breakout Board | Breakout Board |
| Input Range | - | ±VREF/gain |
| Input Type | - | Single Ended, Differential |
| Mounting Type | - | Surface Mount |
| Number of A/D Converters | - | 1 |
| Number of Bits | - | 24 |
| Number of Inputs | - | 5 - 10 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 28-WFQFN Exposed Pad |
| Reference Type | - | External |
| Supplied Contents | - | Board(s), Cable(s) |
| Supplier Device Package | - | 28-TQFN (4x4) |
| Type | Connectivity | Connectivity |
| Utilized IC / Part | MAX11410 | MAX11410 |
| Voltage - Supply, Analog | - | 2.7 V |
| Voltage - Supply, Analog | - | 3.6 V |
| Voltage - Supply, Digital | - | 3.6 V |
| Voltage - Supply, Digital | - | 1.7 V |
MAX11410 Series
IC ADC 24BIT SIGMA-DELTA 28TQFN
| Part | Number of Inputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Mounting Type | Input Type | Number of Bits | Package / Case | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Features | Configuration | Architecture | Data Interface | Reference Type | Number of A/D Converters | Supplier Device Package | Contents | Type | Utilized IC / Part | Function | Input Range | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11410ATI+T | 5, 10 | 125 °C | -40 °C | 2.7 V | 3.6 V | Surface Mount | Differential, Single Ended | 24 | 28-WFQFN Exposed Pad | 3.6 V | 1.7 V | PGA | MUX-PGA-ADC | Sigma-Delta | SPI | External | 1 | 28-TQFN (4x4) | ||||||
Analog Devices Inc./Maxim Integrated MAX11410BOB# | Board(s) | Connectivity | MAX11410 | Breakout Board | ||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX11410ATI+ | 10 | 125 °C | -40 °C | 2.7 V | 3.6 V | Surface Mount | Differential, Single Ended | 24 | 28-WFQFN Exposed Pad | 3.6 V | 1.7 V | PGA | MUX-PGA-ADC | Sigma-Delta | SPI | External | 1 | 28-TQFN (4x4) | ||||||
Analog Devices Inc./Maxim Integrated MAX11410EMCEVKIT# | 24 | SPI | 1 | MAX11410 | ±VREF/gain | Board(s) | ||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX11410EVKIT# | 24 | SPI | 1 | Board(s), Cable(s) | MAX11410 | ±VREF/gain | Board(s), Cable(s) |
