MAX11410EVKIT#

Active

Analog Devices Inc./Maxim Integrated

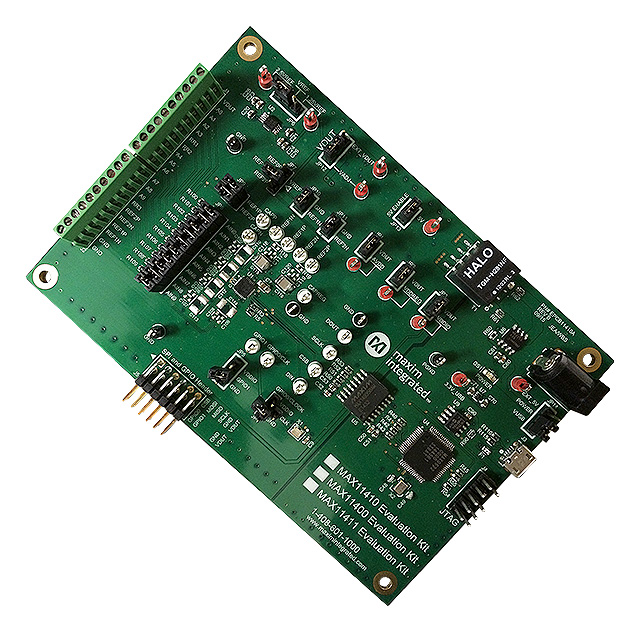

EVAL BOARD FOR MAX11410

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR MAX11410

Technical Specifications

Parameters and characteristics commom to parts in this series

IC ADC 24BIT SIGMA-DELTA 28TQFN

Part	Number of Inputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Mounting Type	Input Type	Number of Bits	Package / Case	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Features	Configuration	Architecture	Data Interface	Reference Type	Number of A/D Converters	Supplier Device Package	Contents	Type	Utilized IC / Part	Function	Input Range	Supplied Contents
Analog Devices Inc./Maxim Integrated MAX11410ATI+T	5, 10	125 °C	-40 °C	2.7 V	3.6 V	Surface Mount	Differential, Single Ended	24	28-WFQFN Exposed Pad	3.6 V	1.7 V	PGA	MUX-PGA-ADC	Sigma-Delta	SPI	External	1	28-TQFN (4x4)
Analog Devices Inc./Maxim Integrated MAX11410BOB#																			Board(s)	Connectivity	MAX11410	Breakout Board
Analog Devices Inc./Maxim Integrated MAX11410ATI+	10	125 °C	-40 °C	2.7 V	3.6 V	Surface Mount	Differential, Single Ended	24	28-WFQFN Exposed Pad	3.6 V	1.7 V	PGA	MUX-PGA-ADC	Sigma-Delta	SPI	External	1	28-TQFN (4x4)
Analog Devices Inc./Maxim Integrated MAX11410EMCEVKIT#								24							SPI		1				MAX11410		±VREF/gain	Board(s)
Analog Devices Inc./Maxim Integrated MAX11410EVKIT#								24							SPI		1		Board(s), Cable(s)		MAX11410		±VREF/gain	Board(s), Cable(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 65.40

General part information

MAX11410 - 24 Bit 1.9k Samples per Second Analog to Digital Converter (ADC) Evaluation Board
