H1WXH-6436M
ActiveAssmann WSW Components
IDC CBL - HHPL64H/AE64M/X
Deep-Dive with AI
Search across all available documentation for this part.
H1WXH-6436M
ActiveAssmann WSW Components
IDC CBL - HHPL64H/AE64M/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H1WXH-6436M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Plug to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Features | Flange, Polarizing Key |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.21 | |
| 10 | $ 14.37 | |||
| 25 | $ 13.82 | |||
| 50 | $ 13.26 | |||
| 100 | $ 12.53 | |||
| 250 | $ 11.42 | |||
| 500 | $ 10.68 | |||
| 1000 | $ 9.80 | |||
Description
General part information
H1WXH-64 Series

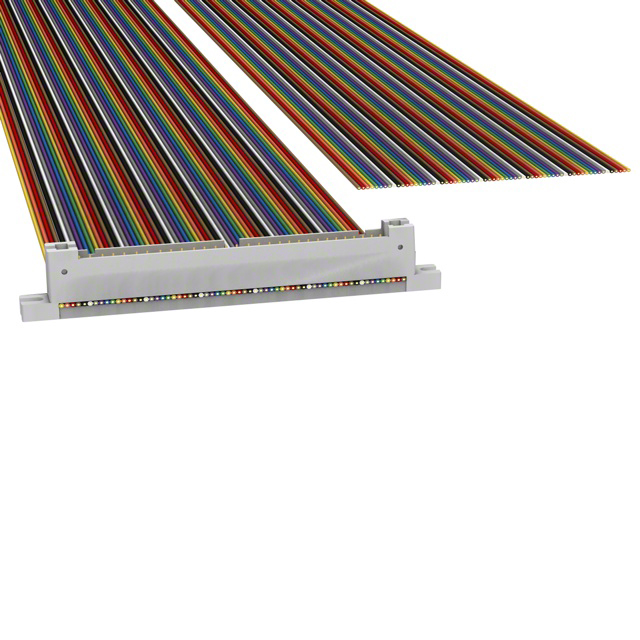

64 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)
