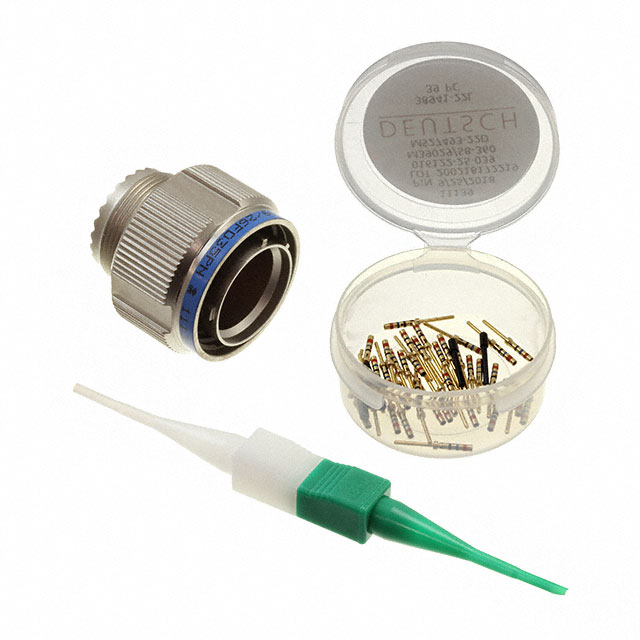

D38999/26FD35PN
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG MALE 37POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
D38999/26FD35PN
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG MALE 37POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/26FD35PN |
|---|---|
| Applications | Industrial, Aviation, Communication Systems, Military |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Features | Self Locking |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 37 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 15 |
| Shell Size, MIL | D |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 194.31 | |
| 1 | $ 261.20 | |||
| 10 | $ 175.68 | |||
| 10 | $ 242.05 | |||
| 25 | $ 233.34 | |||
Description
General part information
D38999/26FD Series
37 Position Circular Connector Plug, Male Pins Crimp
