1-968968-2
ActiveTE Connectivity AMP Connectors

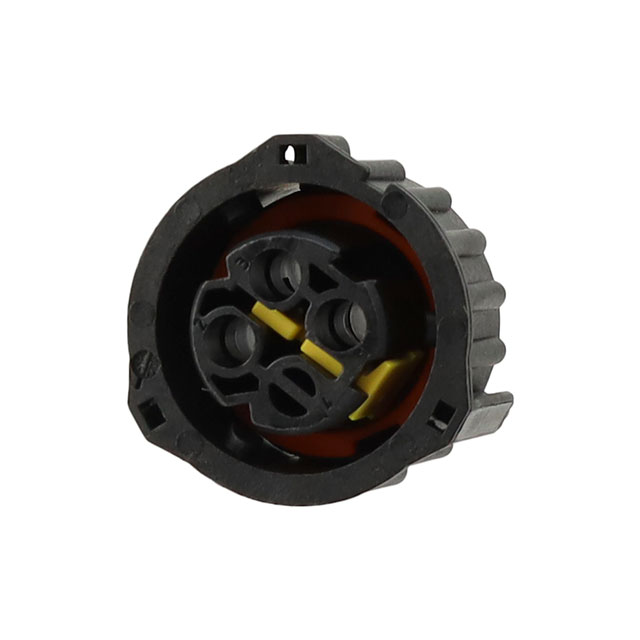

CONN PLUG HSNG FMALE 3POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
1-968968-2
ActiveTE Connectivity AMP Connectors
CONN PLUG HSNG FMALE 3POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-968968-2 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 2.5 mm |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Black |
| Ingress Protection | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 1 |
| Shell Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.23 | |
| 10 | $ 5.46 | |||
| 500 | $ 4.54 | |||
| 1000 | $ 4.06 | |||
968968 Series
CONN PLUG HSNG FMALE 3POS INLINE
| Part | Features | Housing Color | Contact Size | Note | Shell Material | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Material Flammability Rating | Shielding | Type | Contact Shape | Connector Type | Mounting Type | Fastening Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-968968-2 | Coupling Nut | Black | 2.5 mm | Contacts Not Included | Polybutylene Terephthalate (PBT), Glass Filled | 1 | -40 °C | 120 °C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | UL94 HB | Unshielded | For Female Sockets | Circular | Plug Housing | Free Hanging (In-Line) | Bayonet Lock | Crimp |
Description
General part information
968968 Series
3 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
