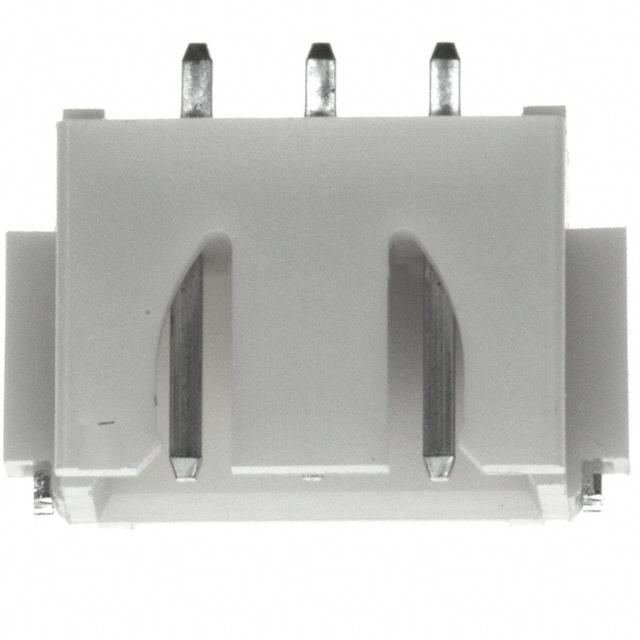

S3B-XH-SM4-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 3POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
S3B-XH-SM4-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 3POS 2.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S3B-XH-SM4-TB |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 6 mm |
| Insulation Height | 0.236 in |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.87 | |
| 10 | $ 0.66 | |||
| 100 | $ 0.51 | |||
| Digi-Reel® | 1 | $ 0.87 | ||
| 10 | $ 0.66 | |||
| 100 | $ 0.51 | |||
| Tape & Reel (TR) | 500 | $ 0.43 | ||
| 1000 | $ 0.40 | |||
| 1500 | $ 0.38 | |||
| 2500 | $ 0.36 | |||
| 3500 | $ 0.35 | |||
| 5000 | $ 0.33 | |||
| 12500 | $ 0.31 | |||
| 25000 | $ 0.29 | |||
Description
General part information
S3B-XH-S Series
Connector Header Surface Mount, Right Angle 3 position 0.098" (2.50mm)
