252121

Active

Amphenol RF

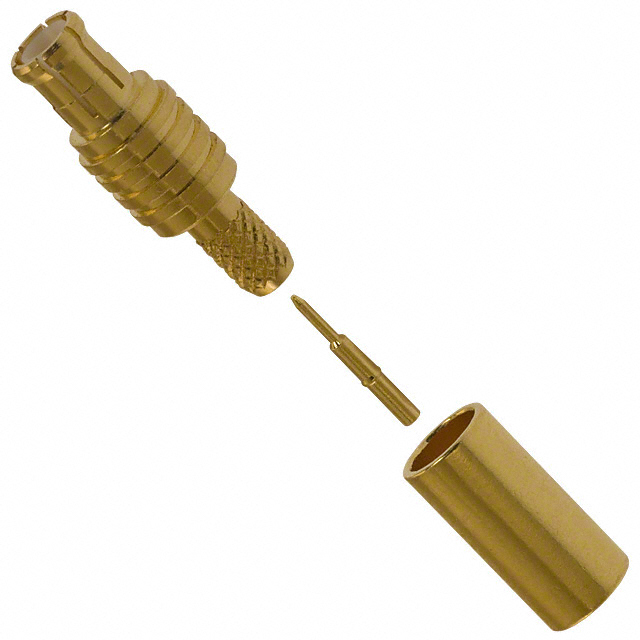

CONN MCX PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

252121

Active

Amphenol RF

CONN MCX PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	252121

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-179, M17/152-RD316, 316 Double Braid, 188
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	225 V

2521 Series

Part	Connector Style	Body Finish	Center Contact Plating	Body Material	Insertion Loss	Center Contact Material	Frequency - Max [Max]	Dielectric Material	Connector Type	Voltage Rating	Impedance	Housing Color	Shield Termination	Mating Cycles	Fastening Type	Contact Termination	Mounting Type	Number of Ports	Cable Group	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Cable Group [Min]	Cable Group [Max]
Amphenol RF 252153	MCX	Gold	Gold	Brass	0.1 dB	Brass	6000 MHz	Polytetrafluoroethylene (PTFE)	Male Pin Receptacle	225 V	50 Ohms	Gold	Solder	500	Snap-On	Solder	Through Hole	1
Amphenol RF 252119	MCX	Gold	Gold	Beryllium Copper	0.1 dB	Brass	6000 MHz	Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTFE)	Male Pin Plug	225 V	50 Ohms	Gold	Crimp	500	Snap-On	Solder	Free Hanging (In-Line) Right Angle	1	188 316 Double Braid M17/152-RD316 RG-179	Connector End Cap Ferrule Insulator
Amphenol RF 252155	MCX	Gold	Gold	Beryllium Copper	0.1 dB	Brass	2.5 GHz	Polytetrafluoroethylene (PTFE)	Male Pin Receptacle	225 V	50 Ohms	Gold	Solder	500	Snap-On	Solder	Through Hole Right Angle	1			155 °C	-55 °C
Amphenol RF 252127	MCX	Gold	Gold	Beryllium Copper	0.1 dB	Brass	6000 MHz	Polytetrafluoroethylene (PTFE)	Male Pin Plug	225 V	50 Ohms	Gold	Crimp	500	Snap-On	Solder	Free Hanging (In-Line)	1	178A 178B 196 196A M17/93-RG178 RG-178	1 Connector 1 Contact 1 Ferrule 1 Spacer	155 °C	-55 °C
Amphenol RF 252184	MCX	Gold	Gold	Brass	0.1 dB	Beryllium Copper	6000 MHz	Polytetrafluoroethylene (PTFE)	Female Socket Jack	225 V	50 Ohms	Gold	Solder	500	Snap-On	Solder	Free Hanging (In-Line)	1
Amphenol RF 252167	MCX	Gold	Gold	Brass	0.1 dB	Phosphor Bronze	6000 MHz	Polytetrafluoroethylene (PTFE)	Female Socket Jack	225 V	50 Ohms	Gold	Crimp	500	Snap-On	Solder		1	178A 178B 196 196A M17/93-RG178 RG-178	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut			Bulkhead - Front Side Nut
Amphenol RF 252107	MCX	Gold	Gold	Beryllium Copper	0.1 dB	Brass	6000 MHz	Polytetrafluoroethylene (PTFE)	Male Pin Plug	225 V	50 Ohms	Gold	Solder	500	Snap-On	Solder	Free Hanging (In-Line)	1	RG-405 Semi Rigid					0.085 in	0.086 in
Amphenol RF 252121	MCX	Gold	Gold	Beryllium Copper	0.1 dB	Brass	6000 MHz	Polytetrafluoroethylene (PTFE)	Male Pin Plug	225 V	50 Ohms	Gold	Crimp	500	Snap-On	Crimp	Free Hanging (In-Line)	1	188 316 Double Braid M17/152-RD316 RG-179	1 Connector 1 Contact 1 Ferrule
Amphenol RF 252109	MCX	Gold	Gold	Brass	0.1 dB	Brass	6000 MHz	Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTFE)	Male Pin Plug	225 V	50 Ohms	Gold	Solder	500	Snap-On	Solder	Free Hanging (In-Line) Right Angle	1	RG-405 Semi Rigid	1 Connector 1 End Cap 1 Insulator				0.085 in	0.086 in
Amphenol RF 252163	MCX	Gold	Gold	Brass	0.1 dB	Beryllium Copper	6000 MHz	Polytetrafluoroethylene (PTFE)	Female Socket Jack	225 V	50 Ohms	Gold	Solder	500	Snap-On	Solder		1	RG-405 Semi Rigid	1 Connector 1 Contact 1 Insulator 1 Lockwasher 1 Nut			Bulkhead - Front Side Nut	0.085 in	0.086 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.45
		10	$ 7.64
		25	$ 7.21
		50	$ 7.04
		100	$ 6.69
		300	$ 5.98
		500	$ 5.63
		1000	$ 4.93

Description

General part information

2521 Series

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
