General part information

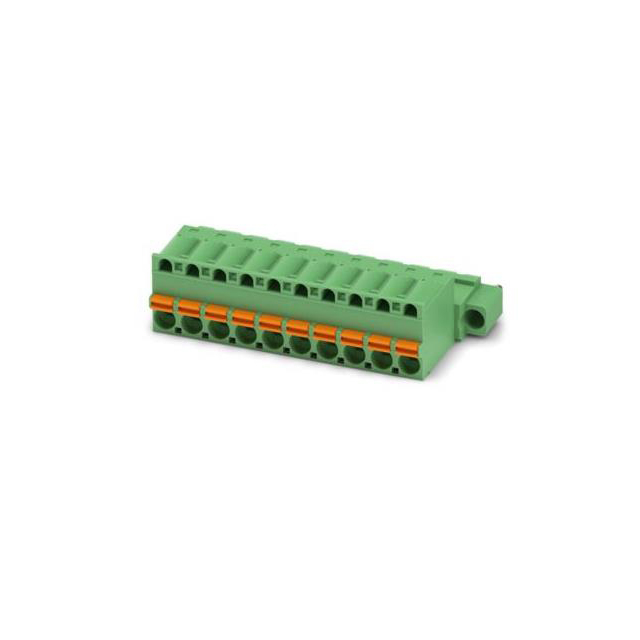

Pluggable Terminal Blocks 10 Pos 5mm Invert Plug 24-12AWG Spring
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1910908 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - IEC | 12 A |
| Current - UL | 10 A |
| Features | Mating Flange |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height | 0.591 in |
| Insulation Height | 15 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 10 |
| Termination Style | Push-In Spring, Screwless - Leg Spring |
| Voltage - IEC | 630 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² |
| Wire Strip Length | 10 mm |
Pluggable Terminal Blocks 10 Pos 5mm Invert Plug 24-12AWG Spring
| Part | Contact Mating Finish | Number of Positions | Termination Style | Mounting Type | Number of Levels | Insulation Height | Insulation Height | Pitch [x] | Pitch [x] | Voltage - UL | Voltage - IEC | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Wire Strip Length | Features | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Color | Current - UL | Material Flammability Rating | Housing Material | Positions Per Level | Current - IEC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1910908 | Tin | 10 | Push-In Spring, Screwless - Leg Spring | Free Hanging (In-Line) | 1 | 0.591 in | 15 mm | 5 mm | 0.197 in | 300 V | 630 V | 12 AWG | 26 AWG | 10 mm | Mating Flange | 0.2 mm² | 2.5 mm² | Green | 10 A | UL94 V-0 | Polyamide (PA), Nylon | 10 | 12 A |
