EFM32GG295F1024-BGA120

Unknown

Silicon Labs

IC MCU 32BIT 1MB FLASH 120BGA

Search across all available documentation for this part.

Unknown

Silicon Labs

IC MCU 32BIT 1MB FLASH 120BGA

Technical Specifications

Parameters and characteristics for this part

Specification	EFM32GG295F1024-BGA120

Connectivity	I2C, UART/USART, SPI, IrDA, EBI/EMI, SmartCard
Core Processor	ARM® Cortex®-M3
Core Size	32-Bit Single-Core
Data Converters [custom]	8, 2
Data Converters [custom]	12b, 12b
Mounting Type	Surface Mount
Number of I/O	93
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

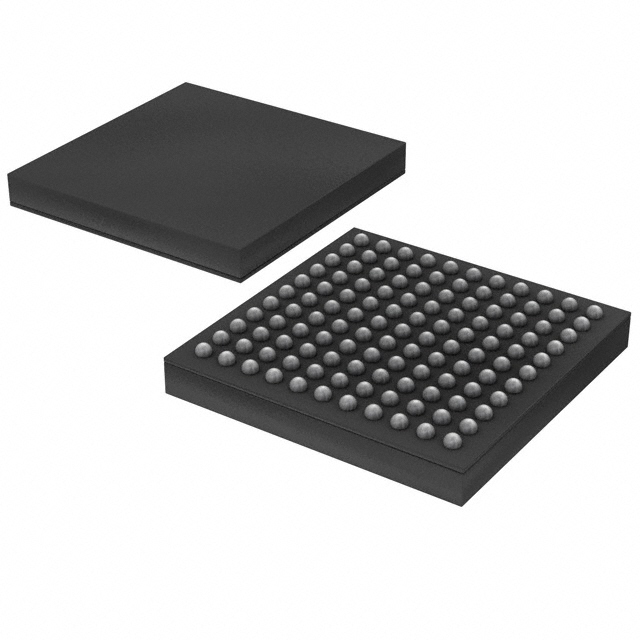

Package / Case	120-VFBGA
Peripherals	Brown-out Detect/Reset, DMA, POR, WDT, PWM
Program Memory Size	1 MB
Program Memory Type	FLASH
RAM Size	128 K
Speed	48 MHz
Supplier Device Package	120-BGA (7x7)
Voltage - Supply (Vcc/Vdd) [Max]	3.8 V
Voltage - Supply (Vcc/Vdd) [Min]	1.85 V

Part	Core Processor	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Speed	Number of I/O	Oscillator Type	Peripherals	Program Memory Type	Core Size	Program Memory Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Data Converters [custom]	Data Converters [custom]	RAM Size	Connectivity
Silicon Labs EFM32GG295F1024-BGA120T	ARM® Cortex®-M3	Surface Mount	85 °C	-40 °C	120-BGA (7x7)	120-VFBGA	48 MHz	93	Internal	Brown-out Detect/Reset DMA POR PWM WDT	FLASH	32-Bit Single-Core	1 MB	1.85 V	3.8 V	2 8	12b 12b	128 K	EBI/EMI I2C IrDA SmartCard SPI UART/USART
Silicon Labs EFM32GG295F1024G-E-BGA120R	ARM® Cortex®-M3	Surface Mount	85 °C	-40 °C	120-BGA (7x7)	120-VFBGA	48 MHz	93	Internal	Brown-out Detect/Reset DMA POR PWM WDT	FLASH	32-Bit Single-Core	1 MB	1.98 V	3.8 V	2 8	12b 12b	128 K	EBI/EMI I2C IrDA SmartCard SPI UART/USART
Silicon Labs EFM32GG295F512-BGA120T	ARM® Cortex®-M3	Surface Mount	85 °C	-40 °C	120-BGA (7x7)	120-VFBGA	48 MHz	93	Internal	Brown-out Detect/Reset DMA POR PWM WDT	FLASH	32-Bit Single-Core	512 KB	1.85 V	3.8 V	2 8	12b 12b	128 K	EBI/EMI I2C IrDA SmartCard SPI UART/USART
Silicon Labs EFM32GG295F1024-BGA120	ARM® Cortex®-M3	Surface Mount	85 °C	-40 °C	120-BGA (7x7)	120-VFBGA	48 MHz	93	Internal	Brown-out Detect/Reset DMA POR PWM WDT	FLASH	32-Bit Single-Core	1 MB	1.85 V	3.8 V	2 8	12b 12b	128 K	EBI/EMI I2C IrDA SmartCard SPI UART/USART

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ARM® Cortex®-M3 Giant Gecko Microcontroller IC 32-Bit Single-Core 48MHz 1MB (1M x 8) FLASH 120-BGA (7x7)
