DY040 Series

Part	Minimum Load Required	Current - Output 2	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Features	Power (Watts)	Mounting Type	Voltage - Output 1	Current - Output 1	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Applications	Type	Voltage - Output 2	Operating Temperature (Max)	Number of Outputs	Voltage - Output 3	Current - Output 3
Tri-Mag, LLC DY040-7	No	500 mA	90 V	264 V	Universal Input	45 W	Chassis Mount	12 V	3.3 A	1.2 in	2 in	4 in	ITE (Commercial)	Open Frame	5 V	70 °C	2
Tri-Mag, LLC DY040-2	No	2 A	90 V	264 V	Universal Input	45 W	Chassis Mount	5 V	3 A	1.2 in	2 in	4 in	ITE (Commercial)	Open Frame	12 V	70 °C	3	-12 V	300 mA
Tri-Mag, LLC DY040-3	No	2.3 A	90 V	264 V	Universal Input	45 W	Chassis Mount	5 V	3 A	1.2 in	2 in	4 in	ITE (Commercial)	Open Frame	12 V	70 °C	2
Tri-Mag, LLC DY040-6	No		90 V	264 V	Universal Input	45 W	Chassis Mount	5 V	7 A	1.2 in	2 in	4 in	ITE (Commercial)	Open Frame		70 °C	1

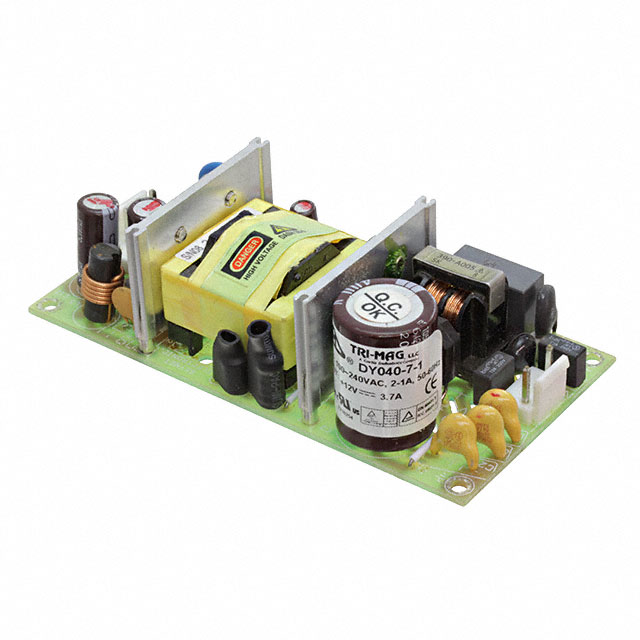

Tri-Mag, LLC DY040-7-1	No		90 V	264 V	Universal Input	45 W	Chassis Mount	12 V	3.3 A	1.2 in	2 in	4 in	ITE (Commercial)	Open Frame		70 °C	1
Tri-Mag, LLC DY040-9-1	No		90 V	264 V	Universal Input	45 W	Chassis Mount	24 V	1.9 A	1.2 in	2 in	4 in	ITE (Commercial)	Open Frame		70 °C	1
