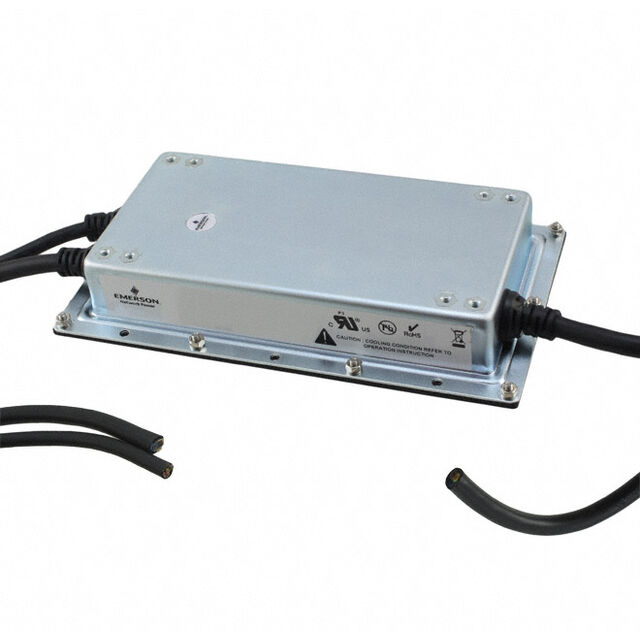

Specification	LCC250-48U-7P

Applications	ITE (Commercial), Medical
Approval Agency	CB, CE
Current - Output 1	5.2 A
Efficiency	91 %
Features	Baseplate, Universal Input, IP64, Adjustable Output, PFC, Remote Sense, Remote On/Off
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	250 W
Size / Dimension Height	1.48 in
Size / Dimension Length	7 in
Size / Dimension Width	4 in
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	48 V

LCC250 Series

Part	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Voltage - Output 1	Current - Output 1	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Features	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Approval Agency	Number of Outputs	Power (Watts)	Type	Efficiency	Voltage - Isolation	Applications	Minimum Load Required
ARTESYN / Advanced Energy LCC250-12U-7P	90 V	264 V	12 V	20.8 A	7 in	1.48 in	4 in	Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input	Chassis Mount	85 °C	-40 °C	CB CE	1	250 W	Enclosed	91 %	4000 Vpk	ITE (Commercial) Medical	No
ARTESYN / Advanced Energy LCC250-24U-4P	90 V	264 V	24 V	10.4 A	7 in	1.48 in	4 in	Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input	Chassis Mount	85 °C	-40 °C	CB CE	1	250 W	Enclosed	91 %	4000 Vpk	ITE (Commercial) Medical	No
ARTESYN / Advanced Energy LCC250-12U-7PE	90 V	264 V	12 V	20.8 A	7 in	1.48 in	4 in	Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input	Chassis Mount	85 °C	-40 °C	CB CE	1	250 W	Enclosed	91 %	4000 Vpk	ITE (Commercial) Medical	No
ARTESYN / Advanced Energy LCC250-48U-4P	90 V	264 V	48 V	5.2 A	7 in	1.48 in	4 in	Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input	Chassis Mount	85 °C	-40 °C	CB CE	1	250 W	Enclosed	91 %	4000 Vpk	ITE (Commercial) Medical	No
ARTESYN / Advanced Energy LCC250-48U-7P	90 V	264 V	48 V	5.2 A	7 in	1.48 in	4 in	Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input	Chassis Mount	85 °C	-40 °C	CB CE	1	250 W	Enclosed	91 %	4000 Vpk	ITE (Commercial) Medical	No
ARTESYN / Advanced Energy LCC250-24U-7P	90 V	264 V	24 V	10.4 A	7 in	1.48 in	4 in	Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input	Chassis Mount	85 °C	-40 °C	CB CE	1	250 W	Enclosed	91 %	4000 Vpk	ITE (Commercial) Medical	No
ARTESYN / Advanced Energy LCC250-24U-4PE	90 V	264 V	24 V	10.4 A	7 in	1.48 in	4 in	Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input	Chassis Mount	85 °C	-40 °C	CB CE	1	250 W	Enclosed	91 %	4000 Vpk	ITE (Commercial) Medical	No

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Technical Data Sheet EN
