TMC6140-LA-T

Active

Analog Devices Inc./Maxim Integrated

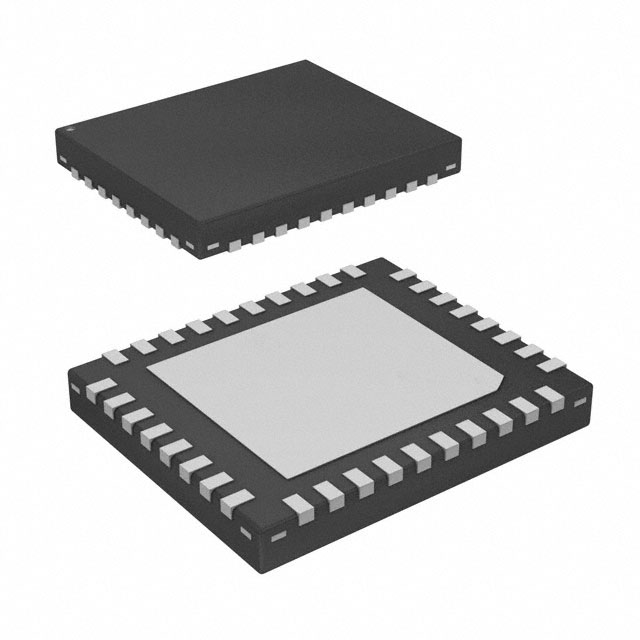

GATE DRIVER IC 5-30V QFN36

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

GATE DRIVER IC 5-30V QFN36

Technical Specifications

Parameters and characteristics for this part

Specification	TMC6140-LA-T

Applications	General Purpose
Current - Output	500 mA
Function	Driver - Fully Integrated, Control and Power Stage
Motor Type - AC, DC	PMSM, Brushless DC (BLDC)
Motor Type - Stepper	Multiphase
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Pre-Driver - Half Bridge (3)
Package / Case	36-VFQFN Exposed Pad
Supplier Device Package	36-QFN (5x6)
Technology	Power MOSFET
Voltage - Load [Max]	30 V
Voltage - Load [Min]	5 V
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.58
	Digi-Reel®	1	$ 2.58
	Tape & Reel (TR)	2000	$ 2.95

GATE DRIVER IC 5-30V QFN36

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Motor Type - AC, DC	Technology	Supplier Device Package	Applications	Voltage - Load [Max]	Voltage - Load [Min]	Motor Type - Stepper	Function	Output Configuration	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case
Analog Devices Inc./Maxim Integrated TMC6140-LA-T	3.6 V	3 V	Brushless DC (BLDC), PMSM	Power MOSFET	36-QFN (5x6)	General Purpose	30 V	5 V	Multiphase	Driver - Fully Integrated, Control and Power Stage	Pre-Driver - Half Bridge (3)	500 mA	-40 °C	125 ¯C	Surface Mount	36-VFQFN Exposed Pad

General part information

Multiphase Motor Driver Power MOSFET 36-QFN (5x6)
