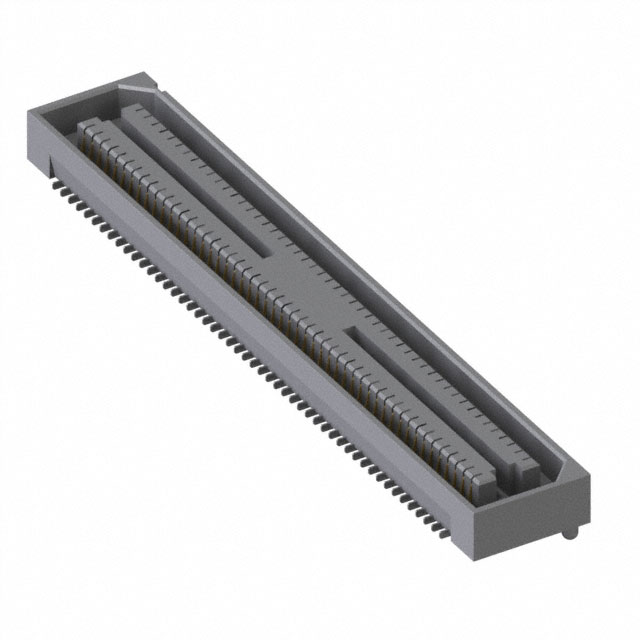

BSE-050-01-L-D-A

Active

Samtec Inc.

CONN RCPT 100POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BSE-050-01-L-D-A

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	8 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Number of Rows	Height Above Board	Height Above Board	Features	Mounting Type	Mated Stacking Heights	Connector Type	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Samtec Inc. BSE-050-01-L-D-A	2	3.25 mm	0.128 in	Board Guide	Surface Mount	5 mm 8 mm	Center Strip Contacts Receptacle	0.8 mm	0.031 in	Gold	10 Áin	0.25 Ám	100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
