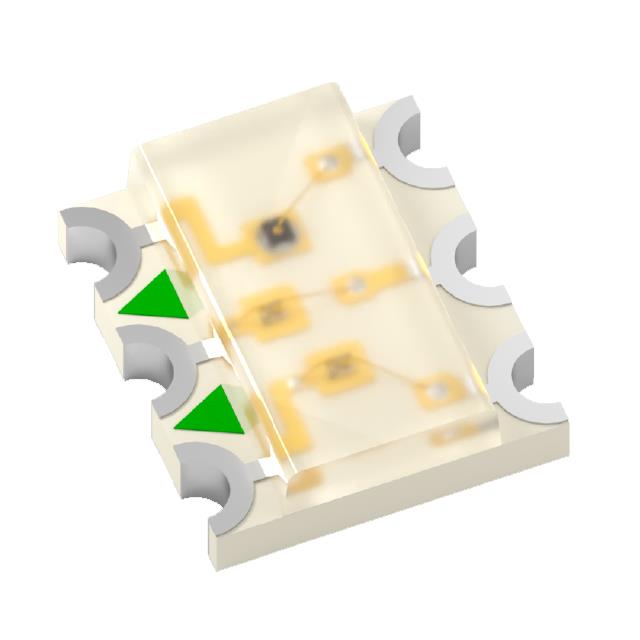

Specification	APF3236LSEKJ3ZGKQBKC

Color	Blue (RGB), Green, Red
Configuration	Independent
Current - Test (Blue)	2 mA
Current - Test (Green)	2 mA
Current - Test (Red)	2 mA
Current - Test Colors	Green, Red, Blue
Height (Max)	1.1 mm
Lens Color	Colorless
Lens Length	3.6 mm
Lens Style	Rectangle, Flat Top
Lens Transparency	Clear
Lens Width	1.9 mm
Millicandela Rating (Blue)	10 mcd
Millicandela Rating (Green)	60 mcd
Millicandela Rating (Red)	40 mcd
Millicandela Rating Colors	Red, Green, Blue
Mounting Type	Surface Mount
Package / Case	No Lead, 6-SMD
Package Name	6-SMD
Size / Dimension Length	3.2 mm
Size / Dimension Width	3.6 mm
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) (Blue)	2.7 V
Voltage - Forward (Vf) (Typ) (Green)	2.7 V
Voltage - Forward (Vf) (Typ) (Red)	1.8 V
Voltage - Forward (Vf) (Typ) Color	Red, Green, Blue
Wavelength - Dominant (Blue)	465 nm
Wavelength - Dominant (Green)	525 nm
Wavelength - Dominant (Red)	625 nm
Wavelength - Dominant Color	Red, Blue, Green
Wavelength - Peak (Blue)	460 nm
Wavelength - Peak (Green)	515 nm
Wavelength - Peak (Red)	640 nm
Wavelength - Peak Colors	Blue, Green, Red

APF3236 Series

Part	Mounting Type	Lens Length	Lens Width	Package Name	Package / Case	Wavelength - Dominant Color	Wavelength - Dominant (Blue)	Wavelength - Dominant (Red)	Wavelength - Dominant (Green)	Lens Style	Height (Max)	Viewing Angle	Size / Dimension Width	Size / Dimension Length	Lens Color	Millicandela Rating Colors	Millicandela Rating (Green)	Millicandela Rating (Blue)	Millicandela Rating (Red)	Current - Test Colors	Current - Test (Blue)	Current - Test (Red)	Current - Test (Green)	Color	Wavelength - Peak Colors	Wavelength - Peak (Red)	Wavelength - Peak (Green)	Wavelength - Peak (Blue)	Lens Transparency	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) (Blue)	Configuration
Kingbright APF3236LSEEZGKQBKC	Surface Mount	3.6 mm	1.9 mm	6-SMD	6-SMD No Lead	Blue Green Red	465 nm	621 nm	525 nm	Flat Top Rectangle	1.3 mm	120 °	3.2 mm	3.6 mm	Colorless	Blue Green Red	60 mcd	10 mcd	15 mcd	Blue Green Red	2 mA	2 mA	2 mA	Blue (RGB) Green Red	Blue Green Red	630 nm	515 nm	460 nm	Clear	Blue Green Red	3.1 V	2.1 V	3.1 V	Independent
Kingbright APF3236SURKVGAPBA	Surface Mount	2 mm	3.6 mm	SMD	6-SMD No Lead	Blue Green Red	470 nm	630 nm	525 nm	Flat Top Rectangle	1.1 mm	120 °	3.2 mm	3.6 mm	Colorless	Blue Green Red	150 mcd	60 mcd	220 mcd	Blue Green Red	20 mA	20 mA	20 mA	Blue (RGB) Green Red	Blue Green Red	650 nm	520 nm	468 nm	Clear	Blue Green Red	3.2 V	1.95 V	3.2 V	Independent
Kingbright APF3236SEKJ3ZGKQBKC	Surface Mount	3.6 mm	1.9 mm	6-SMD	6-SMD No Lead	Blue Green Red	465 nm	625 nm	525 nm	Flat Top Rectangle	1.1 mm	120 °	3.6 mm	3.2 mm	Colorless	Blue Green Red	320 mcd	70 mcd	350 mcd	Blue Green Red	20 mA	20 mA	20 mA	Blue (RGB) Green Red	Blue Green Red	640 nm	515 nm	460 nm	Clear	Blue Green Red	3.3 V	2.2 V	3.3 V	Independent
Kingbright APF3236SEEZGKQBKC	Surface Mount	3.6 mm	1.9 mm	6-SMD	6-SMD No Lead	Blue Green Red	465 nm	621 nm	525 nm	Flat Top Rectangle	1.3 mm	120 °	3.2 mm	3.6 mm	Colorless	Blue Green Red	330 mcd	70 mcd	140 mcd	Blue Green Red	20 mA	20 mA	20 mA	Blue (RGB) Green Red	Blue Green Red	630 nm	515 nm	460 nm	Clear	Blue Green Red	3.3 V	2 V	3.3 V	Independent
Kingbright APF3236SEEZGQBDC	Surface Mount	2 mm	3.6 mm	SMD	6-SMD No Lead	Blue Green Red	465 nm	621 nm	525 nm	Flat Top Rectangle	1.1 mm	120 °	3.2 mm	3.6 mm	Colorless	Blue Green Red	330 mcd	70 mcd	140 mcd	Blue Green Red	20 mA	20 mA	20 mA	Blue (RGB) Green Red	Blue Green Red	630 nm	515 nm	460 nm	Clear	Blue Green Red	3.3 V	2 V	3.3 V	Independent
Kingbright APF3236LSEKJ3ZGKQBKC	Surface Mount	3.6 mm	1.9 mm	6-SMD	6-SMD No Lead	Blue Green Red	465 nm	625 nm	525 nm	Flat Top Rectangle	1.1 mm	120 °	3.6 mm	3.2 mm	Colorless	Blue Green Red	60 mcd	10 mcd	40 mcd	Blue Green Red	2 mA	2 mA	2 mA	Blue (RGB) Green Red	Blue Green Red	640 nm	515 nm	460 nm	Clear	Blue Green Red	2.7 V	1.8 V	2.7 V	Independent
