W5282-10SG-535

Active

Conxall/Switchcraft

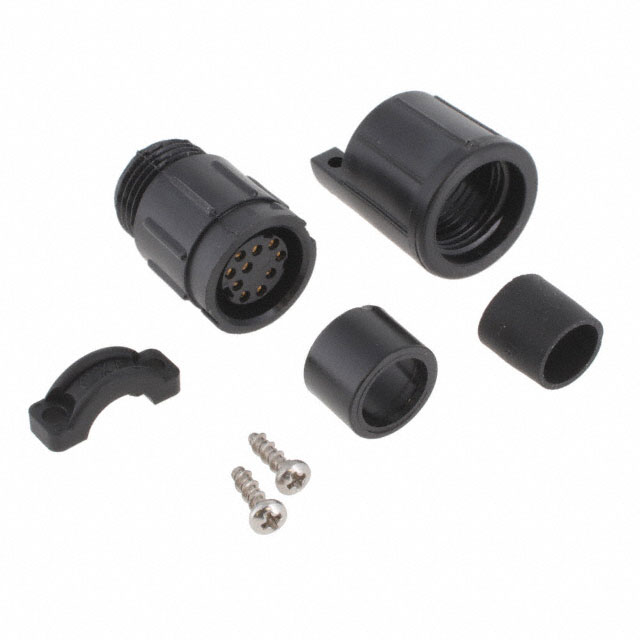

CONN RCPT FMALE 10P SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 10P SOLDER CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	W5282-10SG-535	W5282-10 Series

Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	7.37 mm
Cable Opening [Max] [diameter]	0.4 in	0.29 - 0.4 in
Cable Opening [Max] [diameter]	10.16 mm	10.16 mm
Cable Opening [Min] [diameter]	8.89 mm	7.11 - 8.89 mm
Cable Opening [Min] [diameter]	0.35 in	0.28 - 0.35 in
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	10	10
Orientation	E	E
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

CONN RCPT FMALE 10P SOLDER CUP

Part	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Number of Positions	Voltage Rating	Orientation	Shielding	Primary Material	Mounting Type	Contact Material	Insert Material	Fastening Type	Features	Backshell Material, Plating	Connector Type	Color	Contact Finish - Mating	Ingress Protection	Cable Opening [Max] [diameter]
Conxall/Switchcraft W5282-10SG-528	7.37 mm	7.11 mm	0.29 in	0.28 in	10	600 V	E	Unshielded	Plastic	Free Hanging (In-Line)	Brass	Thermoplastic	Bayonet Lock	Backshell, Cable Clamp	Thermoplastic	Receptacle, Female Sockets	Black	Gold	IP67 - Dust Tight, Waterproof
Conxall/Switchcraft W5282-10SG-535		8.89 mm	0.4 in	0.35 in	10	600 V	E	Unshielded	Plastic	Free Hanging (In-Line)	Brass	Thermoplastic	Bayonet Lock	Backshell, Cable Clamp	Thermoplastic	Receptacle, Female Sockets	Black	Gold	IP67 - Dust Tight, Waterproof	10.16 mm
Conxall/Switchcraft W5282-10SG-328	7.37 mm	7.11 mm	0.29 in	0.28 in	10	600 V	E	Unshielded	Plastic	Free Hanging (In-Line)	Brass	Thermoplastic	Bayonet Lock	Backshell	Thermoplastic	Receptacle, Female Sockets	Black	Gold	IP67 - Dust Tight, Waterproof
Conxall/Switchcraft W5282-10PG-328	7.37 mm	7.11 mm	0.29 in	0.28 in	10	600 V	E	Unshielded	Plastic	Free Hanging (In-Line)	Brass	Thermoplastic	Bayonet Lock	Backshell	Thermoplastic	Male Pins, Receptacle	Black	Gold	IP67 - Dust Tight, Waterproof
Conxall/Switchcraft W5282-10SG-318					10	600 V	E	Unshielded	Plastic	Free Hanging (In-Line)	Brass	Thermoplastic	Bayonet Lock	Backshell	Thermoplastic	Receptacle, Female Sockets	Black	Gold	IP67 - Dust Tight, Waterproof
