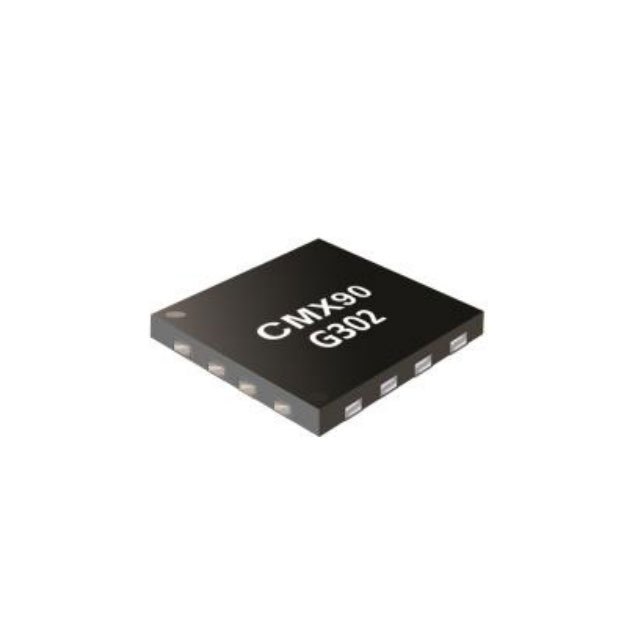

CMX90G302QF-R330

Active

CML Micro

IC AMP 4G/5G 1.4-7.1GHZ 16VQFN

Search across all available documentation for this part.

Active

CML Micro

IC AMP 4G/5G 1.4-7.1GHZ 16VQFN

Technical Specifications

Parameters and characteristics commom to parts in this series

IC AMP 4G/5G 1.4-7.1GHZ 16VQFN

Part	Mounting Type	Noise Figure	Supplier Device Package	Package / Case	Test Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Type	Current - Supply	Gain	P1dB	Frequency [Min]	Frequency [Max]
CML Micro CMX90G301QF-R330	Surface Mount	1.9 dB	16-VQFN (3x3)	16-VFQFN Exposed Pad	3.5 GHz	5 V	2.7 V	4G, 5G	22 mA	16 dB	11.5 dBm	1.4 GHz	7.1 GHz
CML Micro CMX90G301QF	Surface Mount	1.9 dB	16-VQFN (3x3)	16-VFQFN Exposed Pad	3.5 GHz	5 V	2.7 V	4G, 5G	22 mA	16 dB	11.5 dBm	1.4 GHz	7.1 GHz
CML Micro CMX90G301QF-R710	Surface Mount	1.9 dB	16-VQFN (3x3)	16-VFQFN Exposed Pad	3.5 GHz	5 V	2.7 V	4G, 5G	22 mA	16 dB	11.5 dBm	1.4 GHz	7.1 GHz
CML Micro CMX90G302QF-R710	Surface Mount	1.9 dB	16-VQFN (3x3)	16-VFQFN Exposed Pad	3.5 GHz	5 V	2.7 V	4G, 5G	22 mA	16.9 dBi	11.5 dBm	1.4 GHz	7.1 GHz
CML Micro CMX90G302QF-R330	Surface Mount	1.9 dB	16-VQFN (3x3)	16-VFQFN Exposed Pad	3.5 GHz	5 V	2.7 V	4G, 5G	22 mA	16.9 dBi	11.5 dBm	1.4 GHz	7.1 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Amplifier IC 4G, 5G 1.4GHz ~ 7.1GHz 16-VQFN (3x3)

Technical documentation and resources
