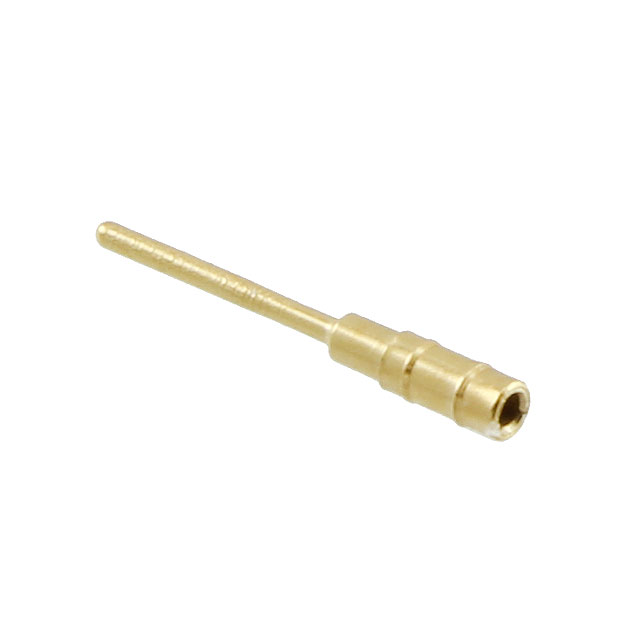

0489-1-15-15-11-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.020 PRESSFIT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.020 PRESSFIT

Technical Specifications

Parameters and characteristics for this part

Specification	0489-1-15-15-11-27-04-0

Accepts Pin Diameter [Max] [diameter]	0.51 mm
Accepts Pin Diameter [Max] [diameter]	0.02 "
Accepts Pin Diameter [Min] [diameter]	0.015 "
Accepts Pin Diameter [Min] [diameter]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Length - Overall	8.46 mm
Length - Overall [x]	0.333 in
Mounting Hole Diameter [diameter]	0.041 in
Mounting Hole Diameter [diameter]	1.04 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth	3.05 mm
Socket Depth	0.12 in
Tail Diameter [diameter]	0.46 mm
Tail Diameter [diameter]	0.018 in
Tail Type	Standard Tail
Termination	Press-Fit

Part	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall	Length - Overall [x]	Tail Type	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Termination
Mill-Max Manufacturing Corp. 0489-1-15-01-11-14-04-0	3.05 mm	0.12 in	0.041 in	1.04 mm	0.79 mm	0.031 in	8.46 mm	0.333 in	Standard Tail	0.46 mm	0.018 in	10 Áin	0.25 Ám	Beryllium Copper	0.015 "	0.51 mm	0.02 "	0.38 mm	-55 °C	125 °C	Gold	Press-Fit
Mill-Max Manufacturing Corp. 0489-1-15-01-11-02-04-0	3.05 mm	0.12 in	0.041 in	1.04 mm	0.79 mm	0.031 in	8.46 mm	0.333 in	Standard Tail	0.46 mm	0.018 in	100 µin	2.54 µm	Beryllium Copper	0.015 "	0.51 mm	0.02 "	0.38 mm	-55 °C	125 °C	Tin-Lead	Press-Fit
Mill-Max Manufacturing Corp. 0489-1-15-15-11-14-04-0	3.05 mm	0.12 in	0.041 in	1.04 mm	0.79 mm	0.031 in	8.46 mm	0.333 in	Standard Tail	0.46 mm	0.018 in	10 Áin	0.25 Ám	Beryllium Copper	0.015 "	0.51 mm	0.02 "	0.38 mm	-55 °C	125 °C	Gold	Press-Fit
Mill-Max Manufacturing Corp. 0489-1-15-15-11-27-04-0	3.05 mm	0.12 in	0.041 in	1.04 mm	0.79 mm	0.031 in	8.46 mm	0.333 in	Standard Tail	0.46 mm	0.018 in	30 Áin	0.76 Ám	Beryllium Copper	0.015 "	0.51 mm	0.02 "	0.38 mm	-55 °C	125 °C	Gold	Press-Fit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.020" (0.38mm ~ 0.51mm) Standard Tail Press-Fit
