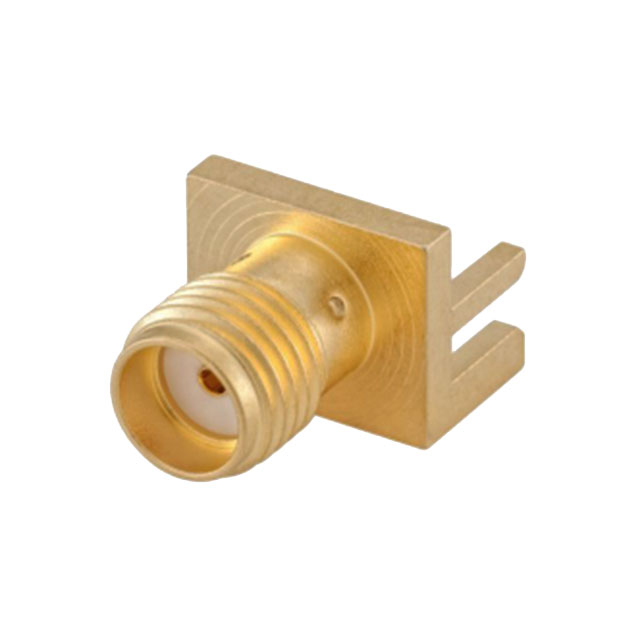

32K145-400L5

Active

Rosenberger

RF SMA CONNECTOR, FEMALE, PANEL MOUNT, BOARD MOUNT, SURFACE MOUNT TERMINAL, JACK, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Rosenberger

RF SMA CONNECTOR, FEMALE, PANEL MOUNT, BOARD MOUNT, SURFACE MOUNT TERMINAL, JACK, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	32K145-400L5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	480 V

Part	Dielectric Material	Mounting Type	Voltage Rating	Number of Ports	Frequency - Max [Max]	Connector Style	Contact Termination	Center Contact Plating	Housing Color	Body Finish	Connector Type	Center Contact Material	Impedance	Body Material	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]
Rosenberger 32K145-400L5	Polytetrafluoroethylene (PTFE)	Board Edge End Launch	480 V	1	18 GHz	SMA	Solder	Gold	Gold	Gold	Female Socket Jack	Beryllium Copper	50 Ohms	Brass	Solder	155 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
