Q-2S04O000H084I

Active

Amphenol Custom Cable

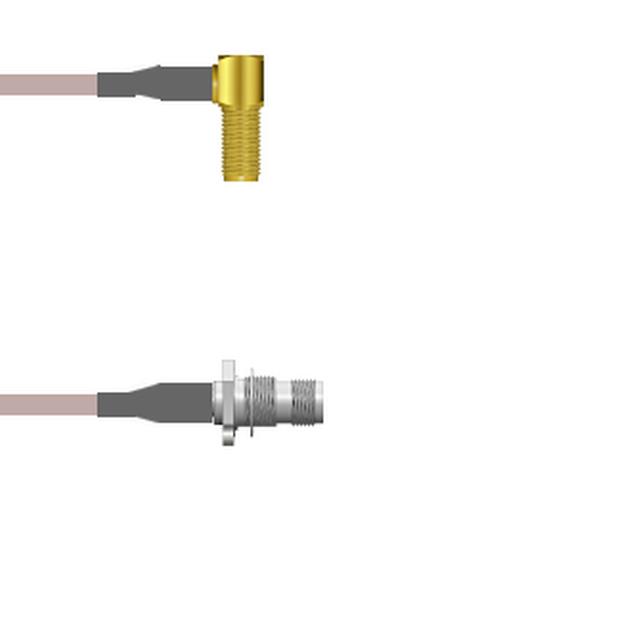

CBL ASSY SMA-TNC JACK-JACK 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2S04O000H084I

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC JACK-JACK 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2S04O000H084I

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	SMA to TNC

Q-2S04O0 Series

Part	Cable Impedance	1st Connector Mounting Feature	1st Connector Mounting Type	2nd Connector Mounting Feature	Color	2nd Contact Gender	2nd Connector	Features	Frequency - Max [Max]	Length [x]	Length [x]	1st Connector	Cable Type	2nd Connector Mounting Type	Connector Impedance	Style	1st Contact Gender	Overall Impedance	Length	Length	Length
Amphenol Custom Cable Q-2S04O000H018I	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Bulkhead - Front Side Nut	Copper	Female	TNC Jack	Shielded	11 GHz	457.2 mm	457.2 mm	Right Angle SMA Jack	RG-142	Panel Mount	50 Ohms	SMA to TNC	Female	50 Ohms
Amphenol Custom Cable Q-2S04O000H2.5M	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Bulkhead - Front Side Nut	Copper	Female	TNC Jack	Shielded	11 GHz			Right Angle SMA Jack	RG-142	Panel Mount	50 Ohms	SMA to TNC	Female	50 Ohms	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-2S04O000H024I	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Bulkhead - Front Side Nut	Copper	Female	TNC Jack	Shielded	11 GHz			Right Angle SMA Jack	RG-142	Panel Mount	50 Ohms	SMA to TNC	Female	50 Ohms		24 "	609.6 mm
Amphenol Custom Cable Q-2S04O000H002M	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Bulkhead - Front Side Nut	Copper	Female	TNC Jack	Shielded	11 GHz			Right Angle SMA Jack	RG-142	Panel Mount	50 Ohms	SMA to TNC	Female	50 Ohms	6.6 ft	78.7 in	2 m
Amphenol Custom Cable Q-2S04O000H1.5M	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Bulkhead - Front Side Nut	Copper	Female	TNC Jack	Shielded	11 GHz			Right Angle SMA Jack	RG-142	Panel Mount	50 Ohms	SMA to TNC	Female	50 Ohms	4.9 ft	59.1 in	1.5 m
Amphenol Custom Cable Q-2S04O000H048I	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Bulkhead - Front Side Nut	Copper	Female	TNC Jack	Shielded	11 GHz			Right Angle SMA Jack	RG-142	Panel Mount	50 Ohms	SMA to TNC	Female	50 Ohms	4 ft	48 in	1200 mm
Amphenol Custom Cable Q-2S04O000H003M	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Bulkhead - Front Side Nut	Copper	Female	TNC Jack	Shielded	11 GHz			Right Angle SMA Jack	RG-142	Panel Mount	50 Ohms	SMA to TNC	Female	50 Ohms	9.8 '	118.1 in	3 m
Amphenol Custom Cable Q-2S04O000H084I	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Bulkhead - Front Side Nut	Copper	Female	TNC Jack	Shielded	11 GHz			Right Angle SMA Jack	RG-142	Panel Mount	50 Ohms	SMA to TNC	Female	50 Ohms	7 ft	84 in	2.1 m
Amphenol Custom Cable Q-2S04O000H001M	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Bulkhead - Front Side Nut	Copper	Female	TNC Jack	Shielded	11 GHz			Right Angle SMA Jack	RG-142	Panel Mount	50 Ohms	SMA to TNC	Female	50 Ohms	3.3 ft	39.4 in	1 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 197.14
		25	$ 193.29
		50	$ 189.44
		100	$ 185.59
		250	$ 181.74

Description

General part information

Q-2S04O0 Series

Cable Assembly Coaxial SMA to TNC RG-142 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
