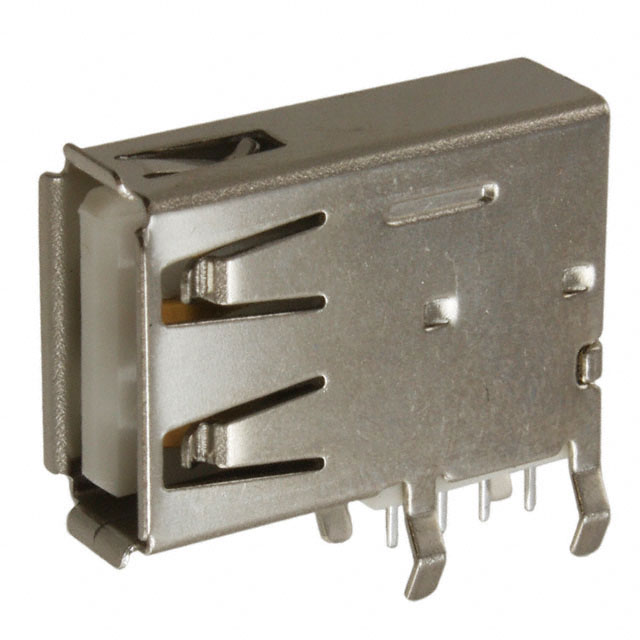

A-USB/2-A-E

Active

Assmann WSW Components

CONN RCPT USB2.0 TYPEA 4POS R/A

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN RCPT USB2.0 TYPEA 4POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	A-USB/2-A-E

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Gender	Receptacle
Insulation Color	White
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Vertical, Flag
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Brass
Specifications	USB 2.0
Termination	Solder

Part	Specifications	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Contacts	Contact Finish	Shell/Shielding Material	Material Flammability Rating	Connector Type	Termination	Voltage - Rated	Gender	Current Rating (Amps)	Insulation Color	Mating Cycles	Number of Ports	Number of Contacts [custom]
Assmann WSW Components A-USB/2-A-3P	USB 2.0	Horizontal	85 °C	-55 °C	Panel Mount Right Angle Through Hole	12	Gold	Phosphor Bronze Steel (SPCC)	UL94 V-0	Stacked USB-A (USB TYPE-A)	Solder	30 VAC	Receptacle	0.5 A	Black	1500	3
Assmann WSW Components A-USB/2-A-E	USB 2.0	Flag Vertical	85 °C	-55 °C	Through Hole Right Angle		Gold	Brass	UL94 V-0	USB-A (USB TYPE-A)	Solder		Receptacle	1.5 A	White	1500	1	4
Assmann WSW Components A-USB/2-A-LP-R	USB 2.0	Horizontal	85 °C	-55 °C	Through Hole Right Angle		Gold	Steel	UL94 V-0	USB-A (USB TYPE-A)	Solder		Plug	1.5 A	Black	1500	1	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
