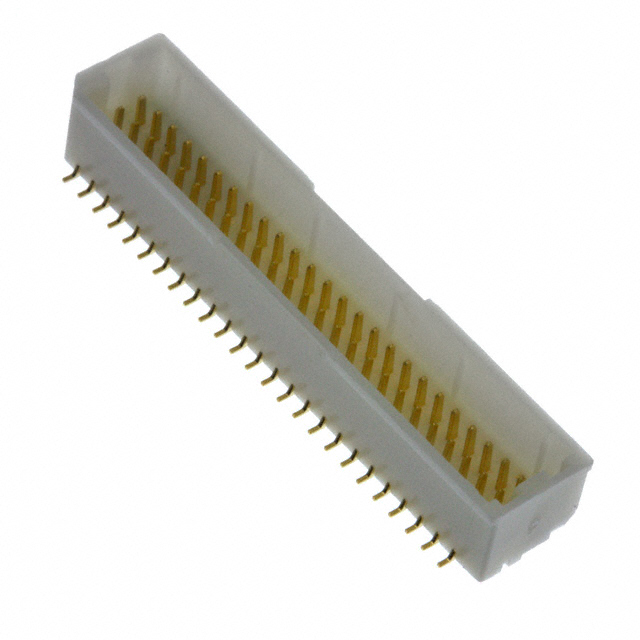

BM50B-SRDS-G-TF

Active

JST Sales America Inc.

CONN HEADER SMD 50POS 1MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 50POS 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM50B-SRDS-G-TF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height	0.167 in
Insulation Height	4.25 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mated Stacking Heights	6.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Contact Type	Mated Stacking Heights	Contact Material	Contact Finish - Mating	Style	Insulation Material	Number of Rows	Features	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Shape	Shrouding	Number of Positions	Material Flammability Rating	Insulation Height	Insulation Height	Connector Type	Mounting Type	Number of Positions Loaded	Fastening Type
JST Sales America Inc. BM50B-SRDS-G-TF	Male Pin	6.3 mm	Phosphor Bronze	Gold	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	2	Pick and Place Solder Retention	50 V	-25 °C	85 °C	Solder	Natural	0.039 in	1 mm	Square	Shrouded - 4 Wall	50	UL94 V-0	0.167 in	4.25 mm	Header	Surface Mount	All	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 50 position 0.039" (1.00mm)
