R123054000
ActiveRadiall USA, Inc.

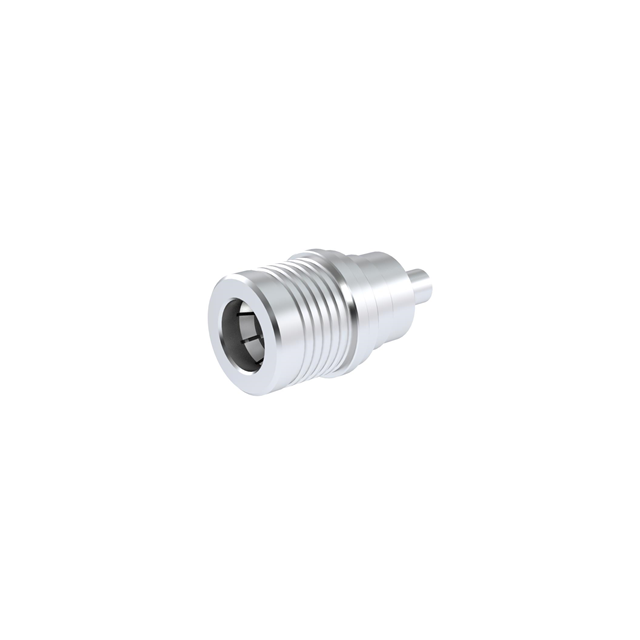

QMA / STRAIGHT PLUG SOLDER TYPE
Deep-Dive with AI
Search across all available documentation for this part.
R123054000
ActiveRadiall USA, Inc.
QMA / STRAIGHT PLUG SOLDER TYPE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R123054000 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | RG-405 (.085" Semi Rigid) |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Insertion Loss | 0.25 dB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.20 | |
| 10 | $ 9.04 | |||
| 25 | $ 8.69 | |||
| 50 | $ 8.35 | |||
| 100 | $ 8.16 | |||
Description
General part information
R12305 Series
QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Documents
Technical documentation and resources
No documents available
