1536E

Active

Hammond Manufacturing

FIXED IND 4.9UH 15A 16 MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

1536E

Active

Hammond Manufacturing

FIXED IND 4.9UH 15A 16 MOHM TH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.38
		10	$ 2.83
		25	$ 2.58
		50	$ 2.21
		100	$ 2.16

Description

General part information

1536 Series

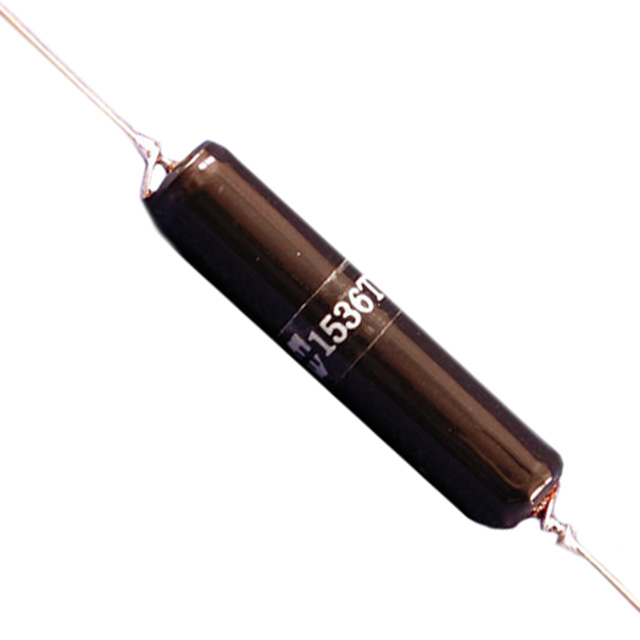

4.9 µH Unshielded Drum Core, Wirewound Inductor 15 A 16mOhm Axial

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1536E	1536 Series

Current Rating (Amps)	15 A	1 - 20 A
DC Resistance (DCR)	16 mOhm	10 - 550 mOhm
Frequency - Self Resonant	42 MHz	1.17 - 45 MHz
Inductance	4.9 µH	1 - 500 µH
Inductance Frequency - Test	7.9 MHz	7.9 MHz
Material - Core	Iron Powder	Iron Powder
Mounting Type	Through Hole	Through Hole
Package / Case	Axial	Axial
Shielding	Unshielded	Unshielded
Size / Dimension	-	33.27 mm
Size / Dimension	-	1.31 "
Size / Dimension	-	31.75 mm
Size / Dimension	-	1.25 in
Size / Dimension	-	1.03 "
Size / Dimension	-	0.5 "
Size / Dimension [diameter]	0.5 in	0.5 - 14.22 mm
Size / Dimension [diameter]	0.5 in	0.31 - 0.56 in
Size / Dimension [x]	31.75 mm	23.11 - 31.75 mm
Size / Dimension [x]	1.25 "	0.91 - 1.25 "
Tolerance	20 %	20 %
Type	Wirewound, Drum Core	Wirewound, Drum Core

1536 Series

FIXED IND 4UH 8A 12 MOHM TH

Part	Type	Current Rating (Amps)	Frequency - Self Resonant	Shielding	Material - Core	Mounting Type	Inductance	Package / Case	DC Resistance (DCR)	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Tolerance	Inductance Frequency - Test	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [custom]	Size / Dimension [custom]
Hammond Manufacturing 1536L	Drum Core, Wirewound	8 A	24.3 MHz	Unshielded	Iron Powder	Through Hole	4 µH	Axial	12 mOhm	7.87 mm	23.11 mm	0.91 "	0.31 in	20 %
Hammond Manufacturing 1536Y	Drum Core, Wirewound	2 A	1.17 MHz	Unshielded	Iron Powder	Through Hole	500 µH	Axial	260 mOhm	14.22 mm	31.75 mm	1.25 "	0.56 "	20 %
Hammond Manufacturing 1536P	Drum Core, Wirewound	3 A	10.4 MHz	Unshielded	Iron Powder	Through Hole	40 µH	Axial	82 mOhm	7.87 mm	31.75 mm	1.25 "	0.31 in	20 %
Hammond Manufacturing 1536F	Drum Core, Wirewound	10 A	28 MHz	Unshielded	Iron Powder	Through Hole	8.8 µH	Axial	21 mOhm	0.5 in	31.75 mm	1.25 "	0.5 in	20 %	7.9 MHz
Hammond Manufacturing 1536S	Drum Core, Wirewound	5 A	5.7 MHz	Unshielded	Iron Powder	Through Hole	68 µH	Axial	54 mOhm	13.46 mm	31.75 mm	1.25 "	0.53 "	20 %
Hammond Manufacturing 1536T	Drum Core, Wirewound	2 A	4.1 MHz	Unshielded	Iron Powder	Through Hole	100 µH	Axial	216 mOhm	7.87 mm	31.75 mm	1.25 "	0.31 in	20 %
Hammond Manufacturing 1536D	Drum Core, Wirewound	20 A	45 MHz	Unshielded	Iron Powder	Through Hole	3.35 µH	Axial	10 mOhm	13.46 mm			0.53 "	20 %	7.9 MHz	33.27 mm	1.31 "
Hammond Manufacturing 1536W	Drum Core, Wirewound	3.5 A	2.65 MHz	Unshielded	Iron Powder	Through Hole	125 µH	Axial	80 mOhm	0.5 in	31.75 mm	1.25 "	0.5 in	20 %
Hammond Manufacturing 1536X	Drum Core, Wirewound	2.5 A	1.5 MHz	Unshielded	Iron Powder	Through Hole	250 µH	Axial	170 mOhm	10.92 mm			0.43 in	20 %				31.75 mm	1.25 in
Hammond Manufacturing 1536E	Drum Core, Wirewound	15 A	42 MHz	Unshielded	Iron Powder	Through Hole	4.9 µH	Axial	16 mOhm	0.5 in	31.75 mm	1.25 "	0.5 in	20 %	7.9 MHz
