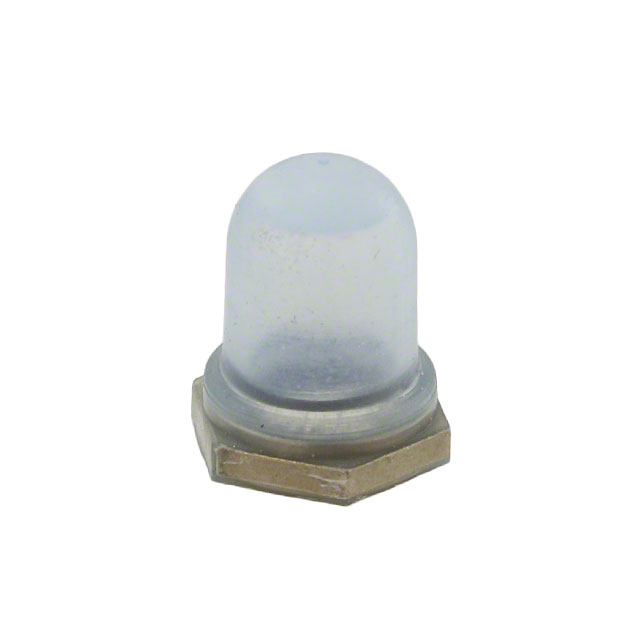

1231/35 4

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT CLEAR

Search across all available documentation for this part.

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT CLEAR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1231/35 4	1231 Series

Actuator Diameter [diameter]	0.3 in	0.125 - 0.3 in
Actuator Diameter [diameter]	7.6 mm	3.18 - 7.6 mm
Color	Clear	Clear, Gray
For Use With/Related Products	Multiple Series	Multiple Series
Ingress Protection	IP66/IP68	IP66/IP68
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-70 °C	-70 °C
Size / Dimension [z]	0.653 "	0.531 - 0.653 "
Size / Dimension [z]	16.6 mm	13.49 - 16.6 mm
Thread Size	3/8-32 NEF-2B	3/8-32 NEF-2B, 1/4-40 NS-2B, 3/8-27 NS-2B
Type	Pushbutton, Full Boot	Pushbutton, Full Boot

PUSHBUTTON FULL BOOT CLEAR

Part	Type	Ingress Protection	Thread Size	Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	For Use With/Related Products	Size / Dimension [z]	Size / Dimension [z]	Mounting Feature
APM HEXSEAL 1231/35 4	Pushbutton, Full Boot	IP66/IP68	3/8-32 NEF-2B	Silicone Rubber	Clear	204 °C	-70 °C	0.3 in	7.6 mm	Multiple Series	0.653 "	16.6 mm	Front of Panel
APM HEXSEAL 1231/31	Pushbutton, Full Boot	IP66/IP68	1/4-40 NS-2B	Silicone Rubber	Gray	204 °C	-70 °C	0.125 in	3.18 mm	Multiple Series	0.531 in	13.49 mm	Front of Panel
APM HEXSEAL 1231/8 49	Pushbutton, Full Boot	IP66/IP68	3/8-27 NS-2B	Silicone Rubber	Clear	204 °C	-70 °C	0.3 in	7.6 mm	Multiple Series	0.653 "	16.6 mm	Front of Panel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PUSHBUTTON FULL BOOT CLEAR
