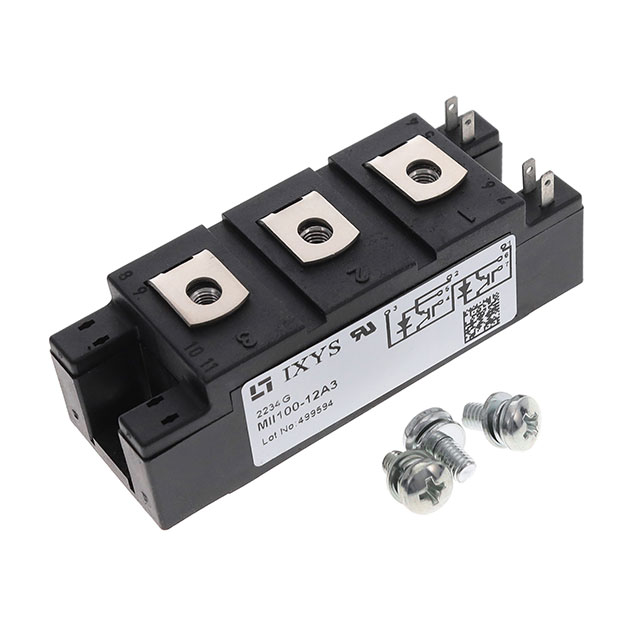

MII100-12A3

Obsolete

IXYS

IGBT MODULE 1200V 135A 560W Y4M5

Search across all available documentation for this part.

Obsolete

IXYS

IGBT MODULE 1200V 135A 560W Y4M5

Technical Specifications

Parameters and characteristics for this part

Specification	MII100-12A3

Configuration	Half Bridge
Current - Collector Cutoff (Max) [Max]	5 mA
IGBT Type	NPT
Input	Standard
Input Capacitance (Cies) @ Vce	5.5 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Y4-M5
Power - Max [Max]	560 W
Supplier Device Package	Y4-M5
Vce(on) (Max) @ Vge, Ic	2.7 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Power - Max [Max]	Mounting Type	NTC Thermistor	Supplier Device Package	Input Capacitance (Cies) @ Vce	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Collector Cutoff (Max) [Max]	IGBT Type	Input	Configuration	Vce(on) (Max) @ Vge, Ic
IXYS MII100-12A3	560 W	Chassis Mount		Y4-M5	5.5 nF	1200 V	150 °C	-40 °C	Y4-M5	5 mA	NPT	Standard	Half Bridge	2.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module NPT Half Bridge 1200 V 135 A 560 W Chassis Mount Y4-M5

Technical documentation and resources

No documents available
