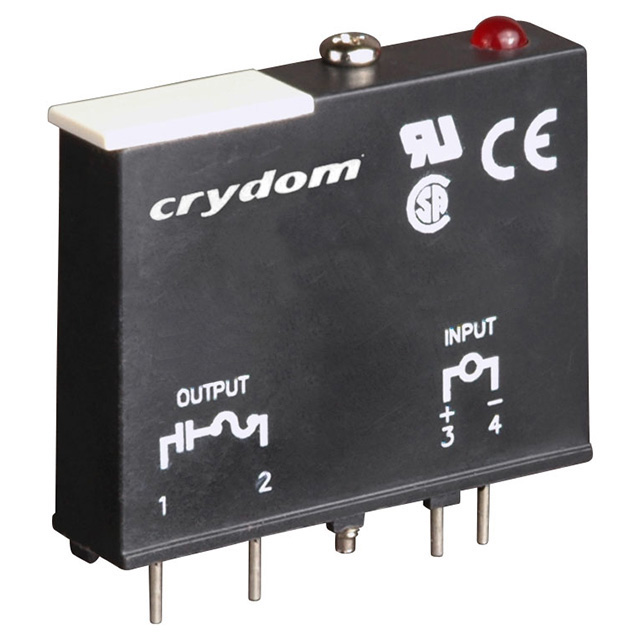

C4OACA

Active

Sensata-Crydom

AC OUTPUT MODULE 3A

Search across all available documentation for this part.

Active

Sensata-Crydom

AC OUTPUT MODULE 3A

Technical Specifications

Parameters and characteristics for this part

Specification	C4OACA

Color	Black
Current - Input	22 mA
Current - Output	3 A
Features	Status LED(s), Fused, Hold Down Screw
Style	C4
Turn Off Time	8.33 ms
Turn On Time	8.33 ms
Type	AC Output Module
Voltage - Input [Max]	32 V
Voltage - Input [Min]	4 V
Voltage - Output [Max]	280 VAC
Voltage - Output [Min]	12 VAC

AC OUTPUT MODULE 3A

Part	Voltage - Input [Max]	Voltage - Input [Min]	Turn Off Time	Type	Voltage - Output [Max]	Voltage - Output [Min]	Turn On Time	Style	Color	Features	Current - Output	Current - Input
Sensata-Crydom C4OACA	32 V	4 V	8.33 ms	AC Output Module	280 VAC	12 VAC	8.33 ms	C4	Black	Fused, Hold Down Screw, Status LED(s)	3 A	22 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC Output Module Output Module 3A 12 ~ 280VAC Output 4 ~ 32VDC Supply

Technical documentation and resources
