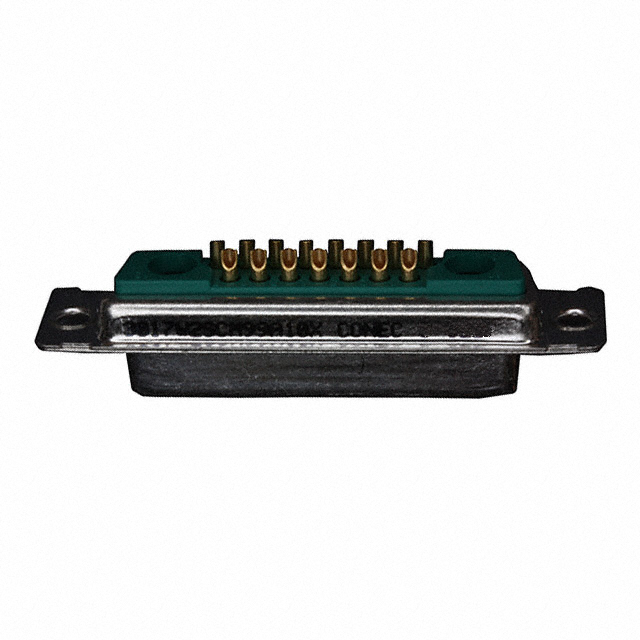

3017W2SCM99A10X

Active

Amphenol CONEC

CONN D-SUB RCPT 17POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3017W2SCM99A10X

Active

Amphenol CONEC

CONN D-SUB RCPT 17POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3017W2SCM99A10X

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	17
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	17W2, 3 (DB, B)
Wire Gauge	20 AWG

3017W2S Series

Part	Connector Type	Material Flammability Rating	Number of Positions	Mounting Type	Dielectric Material	Shell Size, Connector Layout	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Wire Gauge	Contact Finish	Connector Style	Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Material	Termination	Number of Positions [custom]	Number of Positions [custom]	Backset Spacing	Backset Spacing	Features	Contact Type
Amphenol CONEC 3017W2SAR71E40X	Receptacle Female Sockets
Amphenol CONEC 3017W2SAM62A10X	Receptacle Female Sockets
Amphenol CONEC 3017W2SAM99A10X	Receptacle Female Sockets	UL94 V-0	17	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	17W2 3 (DB B)	Housing/Shell (Unthreaded)	8 çin	0.203 çm	2	20 AWG	Gold	Combo D-Sub	Green	250 VDC	-55 °C	125 °C	7.5 A	Copper Alloy
Amphenol CONEC 3017W2SAR99E20X	Receptacle Female Sockets	UL94 V-0	17	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	17W2 3 (DB B)	4-40 Board Side			2		Gold	Combo D-Sub	Green	250 VDC	-55 °C	125 °C	7.5 A	Copper Alloy	Solder
Amphenol CONEC 3017W2SCT56N40X	Receptacle Female Sockets	UL94 V-0		Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	17W2 3 (DB B)	Housing/Shell (4-40)	30 Áin	0.76 Ám	2		Gold	Combo D-Sub	Green		-55 °C	125 °C	5 A 20 A	Copper Alloy	Solder	15	2	0.283 in	7.2 mm	Board Lock Mounting Brackets	Signal and Power
Amphenol CONEC 3017W2SAR69C40X	Receptacle Female Sockets			Through Hole		17W2 3 (DB B)	4-40 Board Side			2		Gold	Combo D-Sub							Solder	15	2				Signal and Power
Amphenol CONEC 3017W2SAM99A30X	Receptacle Female Sockets	UL94 V-0	17	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	17W2 3 (DB B)	Housing/Shell (Unthreaded)	8 çin	0.203 çm	2	20 AWG	Gold	Combo D-Sub	Green	250 VDC	-55 °C	125 °C	7.5 A	Copper Alloy
Amphenol CONEC 3017W2SAR71AA0X	Receptacle Female Sockets
Amphenol CONEC 3017W2SCM99A10X	Receptacle Female Sockets	UL94 V-0	17	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	17W2 3 (DB B)	Housing/Shell (Unthreaded)	30 Áin	0.76 Ám	2	20 AWG	Gold	Combo D-Sub	Green		-55 °C	125 °C	5 A	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 17.56
		10	$ 15.22
		30	$ 14.43
		60	$ 14.22
		90	$ 12.54
		240	$ 11.71
		450	$ 11.46

Description

General part information

3017W2S Series

17 (15 + 2 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
