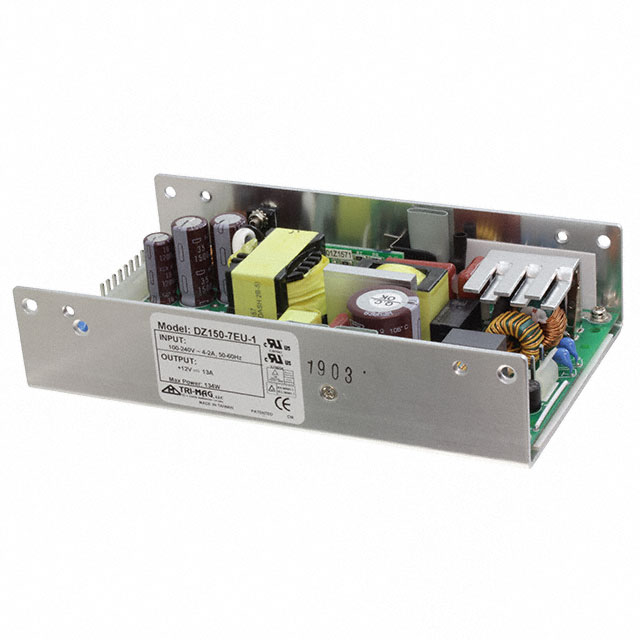

DZ150-7EU-1

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 150W

Search across all available documentation for this part.

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 150W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 15V 5V 150W

Part	Applications	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Current - Output 2	Voltage - Output 1	Number of Outputs	Type	Operating Temperature [Max]	Voltage - Output 2	Features	Current - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 3	Current - Output 4	Voltage - Output 3
Tri-Mag, LLC DZ150-8EU	ITE (Commercial)	150 W	90 VAC	264 VAC	Chassis Mount	2 A	15 V	2	Open Frame	70 °C	5 V	PFC, Universal Input	9.6 A	1.5 "	6.8 "	3.8 "	96.5 mm	38.1 mm	172.7 mm
Tri-Mag, LLC DZ150-19EU	ITE (Commercial)	150 W	90 VAC	264 VAC	Chassis Mount	8 A	3.3 V	4	Open Frame	70 °C	5 V	PFC, Universal Input	10 A	1.5 "	6.8 "	3.8 "	96.5 mm	38.1 mm	172.7 mm	3.5 A	500 mA	12 V
Tri-Mag, LLC DZ150-7EU-1	ITE (Commercial)	150 W	90 VAC	264 VAC	Chassis Mount		12 V	1	Open Frame	70 °C		PFC, Universal Input	12.5 A	1.5 "	6.8 "	3.8 "	96.5 mm	38.1 mm	172.7 mm
Tri-Mag, LLC DZ150-1EU	ITE (Commercial)	150 W	90 VAC	264 VAC	Chassis Mount		5 V	3	Open Frame	70 °C	12 V	PFC, Universal Input	10 A	1.5 "	6.8 "	3.8 "	96.5 mm	38.1 mm	172.7 mm	500 mA		-12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 200.28

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Technical documentation and resources
