PD-CAP-3/16-0
ActiveTE Connectivity Raychem Cable Protection

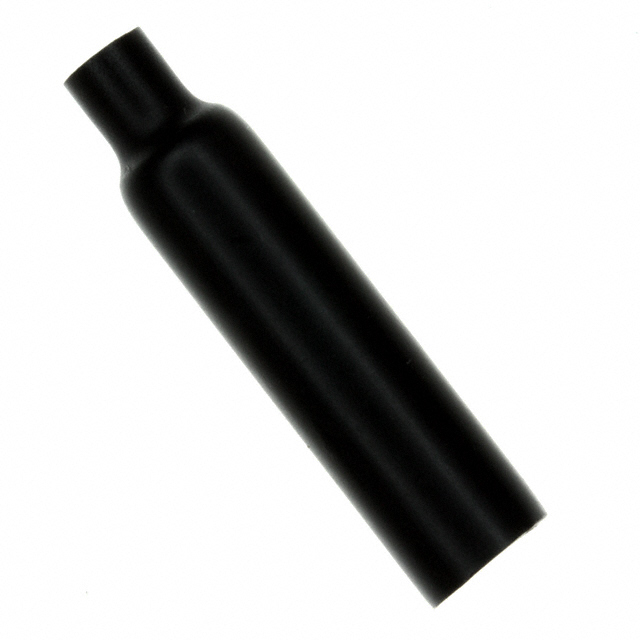

HEATSHRINK END CAP BLACK 3/16"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PD-CAP-3/16-0
ActiveTE Connectivity Raychem Cable Protection
HEATSHRINK END CAP BLACK 3/16"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PD-CAP-3/16-0 |
|---|---|
| Color | Black |
| Features | Flex Resistant, Splash Resistant, Abrasion Resistant, Vibration Resistant, Encapsulant Lined, Moisture Resistant |
| Large Diameter Recovered [diameter] | 1.52 mm |
| Large Diameter Recovered [diameter] | 0.06 in |
| Large Diameter Supplied [diameter] | 0.187 in |
| Large Diameter Supplied [diameter] | 4.75 mm |
| Material | Polyolefin (PO), Semi-Rigid |
| Total Length Supplied [x] | 25.4 mm |
| Total Length Supplied [x] | 1 in |
| Type | Cap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.23 | |
| 5 | $ 0.20 | |||
| 10 | $ 0.16 | |||
| 20 | $ 0.15 | |||
| 50 | $ 0.14 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
Description
General part information
RAYCHEM PD Cap Series
Heat Shrink Cap Black
