ZEPIR000103ZRDG

Active

Zilog

REF DESIGN ZMOTION DETECT MOD II

Search across all available documentation for this part.

Active

Zilog

REF DESIGN ZMOTION DETECT MOD II

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

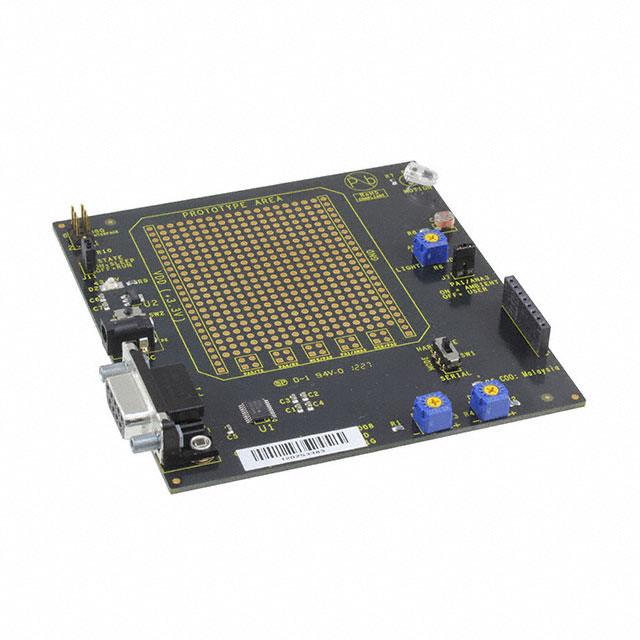

RE200B, Z8FS040 ZMOTION® Motion, Pyroelectric, PIR (Passive Infrared) Sensor Evaluation Board

Technical documentation and resources

Specification	ZEPIR000103ZRDG	ZEPIR000103 Series

Embedded	True	True
Interface	-	RS-232
Sensing Range	Multiple Lenses	Multiple Lenses, 95 Degree Detection Pattern
Sensing Range	-	7 m
Sensitivity	Adjustable	Adjustable
Sensor Type	Pyroelectric, PIR (Passive Infrared), Motion	Pyroelectric, PIR (Passive Infrared), Motion
Supplied Contents	Board(s)	Board(s), Cable(s), Power Supply
Utilized IC / Part	Z8FS040, RE200B	Z8FS040, RE200B, ZEPIR0BAS02MODG

Part	Utilized IC / Part	Embedded	Sensing Range	Sensor Type	Supplied Contents	Sensitivity	Sensing Range	Interface
Zilog ZEPIR000103ZRDG	RE200B, Z8FS040		Multiple Lenses	Motion, PIR (Passive Infrared), Pyroelectric	Board(s)	Adjustable
Zilog ZEPIR000103KITG	ZEPIR0BAS02MODG		95 Degree Detection Pattern	Motion, PIR (Passive Infrared), Pyroelectric	Board(s), Cable(s), Power Supply	Adjustable	7 m	RS-232
